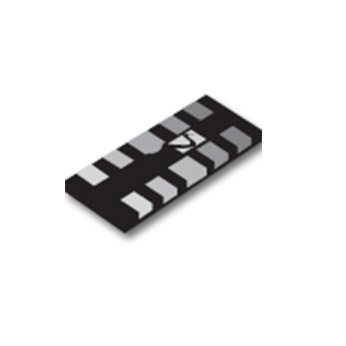

RCLAMP0524P The Semtech RCLAMP0524P is a TVS diode array designed for high-speed interfaces like HDMI. It offers ultra-low capacitance and robust ESD protection.
Mfr Part #:

RCLAMP0524P

Available from 2 distributors
Mfr Name: Semtech
Semtech
The Semtech RCLAMP0524P is a TVS diode array designed for high-speed interfaces like HDMI. It offers ultra-low capacitance and robust ESD protection.
✓ Total Stock: 18,239 pcs

RCLAMP0524P Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
16,633 pcs
On Request
16633 pcs On Request 1 On Request On Request 1114+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,606 pcs
On Request
1606 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RCLAMP0524P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Package / Case
View Similar Products (0)

RCLAMP0524P Description

Short technical summary and product information.

The Semtech RCLAMP0524P is a specialized TVS (Transient Voltage Suppressor) diode array designed to protect sensitive circuitry in high-definition multimedia interfaces (HDMI). It features an ultra-low capacitance of 0.3pF typical, crucial for maintaining signal integrity in high-speed data transmission.



This device is engineered to meet stringent industry standards, including IEC 61000-4-2 for ESD immunity, with ratings of ±15kV (air) and ±8kV (contact). Its solid-state silicon-avalanche technology ensures reliable protection without degradation after repeated strikes. The RCLAMP0524P is suitable for applications requiring compliance with HDMI 1.3 specifications, including Set Top Boxes, DVD players, PCs, video cameras, gaming stations, and digital televisions.



The small package solution, such as the flow-through leadless package (SLP), is designed to maintain signal integrity. This protection device helps designers meet the HDMI eye pattern and TDR requirements while safeguarding against transient threats from user contact or cable plugging.



Key features include industry-leading low clamping voltage and RoHS/WEEE compliance, making it a robust choice for protecting high-speed interfaces.

RCLAMP0524P Quick Information

Product Type: TVS Diode
Canonical Name: RCLAMP0524P TVS Diode Array
Subcategory: TVS Diode

RCLAMP0524P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RCLAMP0524P Features

  • Ultra-low capacitance of 0.3pF typical.
  • Meets IEC 61000-4-2 ESD standards.
  • Designed for HDMI 1.3 interfaces.
  • Solid-state silicon-avalanche technology.
  • RoHS and WEEE compliant.

RCLAMP0524P Applications

  • Protecting HDMI source devices.
  • Protecting HDMI sink devices.
  • Used in Set Top Boxes.
  • Used in PCs and gaming stations.
  • Safeguarding video cameras.

RCLAMP0524P FAQs

4 frequently asked questions generated from this part’s specifications.
What is the typical capacitance of the RCLAMP0524P?

The typical capacitance for the RCLAMP0524P is 0.3pF line-to-line.

What ESD immunity level does the RCLAMP0524P meet?

The RCLAMP0524P meets IEC 61000-4-2 ESD standards with ±15kV for air discharge and ±8kV for contact discharge.

What type of package does the RCLAMP0524P use?

The RCLAMP0524P is available in a flow-through leadless package (SLP).

Is the RCLAMP0524P RoHS compliant?

Yes, the RCLAMP0524P is RoHS3 Compliant.
