RCLAMP0512TQTCT The RCLAMP0512TQTCT from Semtech is a low capacitance 2-line surge and ESD protection TVS diode with 5V working voltage and 8.5V clamping at 20A. It features 30kV ESD withstand, 170W peak pulse power, and is qualified to AEC-Q100 Grade 1 for automotive applications.
Mfr Part #:

RCLAMP0512TQTCT

Available from 3 distributors
Mfr Name: Semtech
Semtech
The RCLAMP0512TQTCT from Semtech is a low capacitance 2-line surge and ESD protection TVS diode with 5V working voltage and 8.5V clamping at 20A. It features 30kV ESD withstand, 170W peak pulse power, and is qualified to AEC-Q100 Grade 1 for automotive applications.
✓ Total Stock: 12,386 pcs
$ Price Range: $0.37 - $1.35

RCLAMP0512TQTCT Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
7,333 pcs
On Request
7333 pcs On Request 1 On Request On Request 20+ On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
4,980 pcs
On Request
4980 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
73 pcs
On Request
73 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RCLAMP0512TQTCT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Applications
Automotive Grade
Capacitance @ Frequency
Current
Halogen Free
Industrial Grade
Lead Style
Mounting Type
Operating Temperature
Power
Power Line Protection
Supplier Device Package
Tape & Reel
Type
Unidirectional Channels
Voltage
View Similar Products (0)

RCLAMP0512TQTCT Description

Short technical summary and product information.

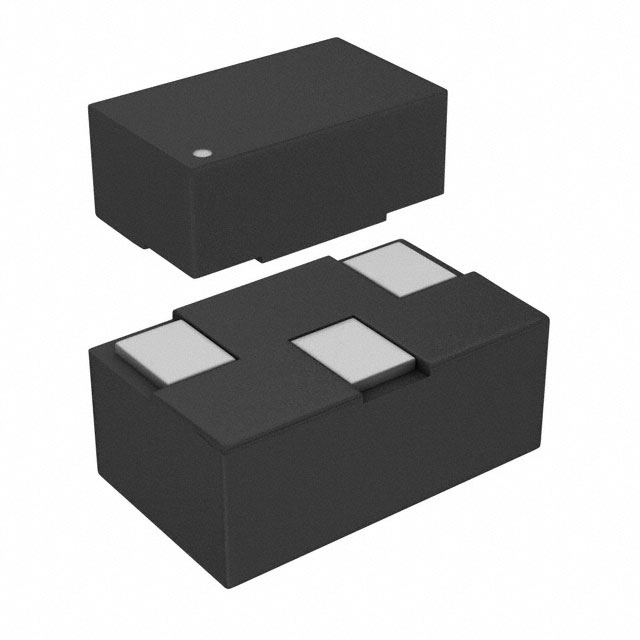

The RCLAMP0512TQTCT, part of Semtech's RClamp family, is a low capacitance RailClamp 2-line surge and ESD protection device. It integrates low capacitance steering diodes with a snap-back TVS to provide high surge capability while minimizing clamping voltage. Key specifications include a 5V reverse stand-off voltage, 8.5V maximum clamping voltage at 20A (8/20µs), and ultra-low typical dynamic resistance of 0.075Ω. The device offers 30kV ESD withstand per IEC 61000-4-2 (air and contact) and 4kV EFT immunity. Junction capacitance is a maximum of 3pF, making it suitable for high-speed data lines such as Ethernet and USB 2.0. The device is qualified to AEC-Q100 Grade 1, operating over -40°C to +125°C. It is housed in a compact SGP1006N3T surface mount package measuring 1.0x0.6x0.4mm with NiAu lead finish and UL 94V-0 flammability rating. Packaging is Tape and Reel. Applications include automotive electronics, industrial equipment, integrated magnetics/RJ-45 connectors, and 10/100/1000 Ethernet.

RCLAMP0512TQTCT Quick Information

Product Type: TVS Diode
Series: 0512TQ
Canonical Name: Semtech RCLAMP0512TQTCT TVS Diode, 5V, 2-Line, SGP1006N3T Package
Subcategory: ESD Protection Diodes

RCLAMP0512TQTCT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

RCLAMP0512TQTCT Estimated Pricing

Qty Low High
1+ $1.35 $1.35
10+ $0.82 $0.82
100+ $0.57 $0.57
500+ $0.47 $0.47
1,000+ $0.44 $0.44
3,000+ $0.37 $0.37

Estimated market price range - modelled values for guidance only, not live distributor offers.

RCLAMP0512TQTCT Features

  • 5V working voltage with 8.5V clamping at 20A.
  • 30kV ESD withstand per IEC 61000-4-2.
  • Ultra-low capacitance: 3pF maximum.
  • AEC-Q100 Grade 1 qualified for automotive.
  • Surface mount SGP1006N3T package 1.0x0.6mm.

RCLAMP0512TQTCT Applications

  • Protects two high-speed automotive data lines.
  • Suitable for 10/100/1000 Ethernet interfaces.
  • Used in industrial equipment and RJ-45 connectors.
  • Ideal for USB 2.0 and 2.5GbE ports.

RCLAMP0512TQTCT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the reverse stand-off voltage?

The reverse stand-off voltage is 5V (maximum), measured between any two pins at -40°C to +125°C.

What is the breakdown voltage range?

Breakdown voltage is guaranteed minimum 6.5V, typical 9.5V, and maximum 11.5V at 10mA test current.

What is the clamping voltage?

Maximum clamping voltage is 8.5V at 20A (8/20µs pulse). Typical clamping voltages are 4.3V at 4A and 5.2V at 16A (TLP).

What is the peak pulse current rating?

The device can handle a peak pulse current of 20A with an 8/20µs waveform.

What package is this device available in?

It is available in a SGP1006N3T (3-XDFN) surface mount package measuring 1.0mm x 0.6mm x 0.4mm with NiAu lead finish.

What is the ESD withstand voltage?

The device withstands ±30kV air discharge and ±30kV contact discharge per IEC 61000-4-2 and ISO 10605.

What is the operating temperature range?

The junction operating temperature range is -40°C to +125°C.
