| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,265 pcs
|
3265 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Industrial Grade | |
| Lead Spacing | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

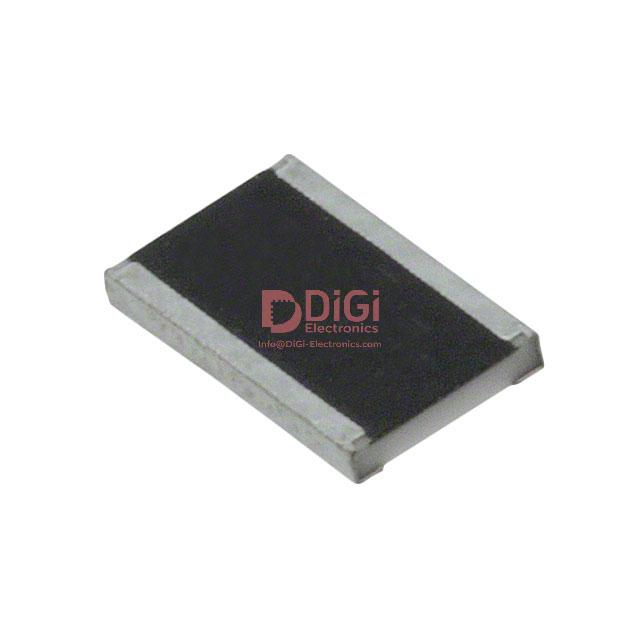

This Vishay Dale RCL12182K20JNEK is a thick film surface mount resistor designed for reliable performance. It offers a resistance value of 2.2 kΩ with a tolerance of ±5% and a power rating of 1W.
The resistor operates within a temperature range of -55°C to 155°C and features a temperature coefficient of ±200ppm/°C. Its construction utilizes thick film technology, making it suitable for various applications.
The component is housed in a Wide 1812 (4532 Metric), 1218 package. It meets AEC-Q200 standards, indicating its suitability for automotive applications. The dimensions are 3.20mm L x 4.60mm W with a height of 0.60mm.
Key specifications include 2 terminations and a supplier device package of 1218. The RoHS status is listed as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 2.2 kΩ.
The tolerance is ±5%.
The power rating is 1W.
The operating temperature range is -55°C to 155°C.
The package type is Wide 1812 (4532 Metric), 1218.
Yes, the resistor features Automotive AEC-Q200 ratings.
