Mfr Part #:

RCJ-2122

Name: RCJ-2122
Brand: CUI Devices
SKU: RCJ-2122

Mfr Name: CUI Devices

Description:

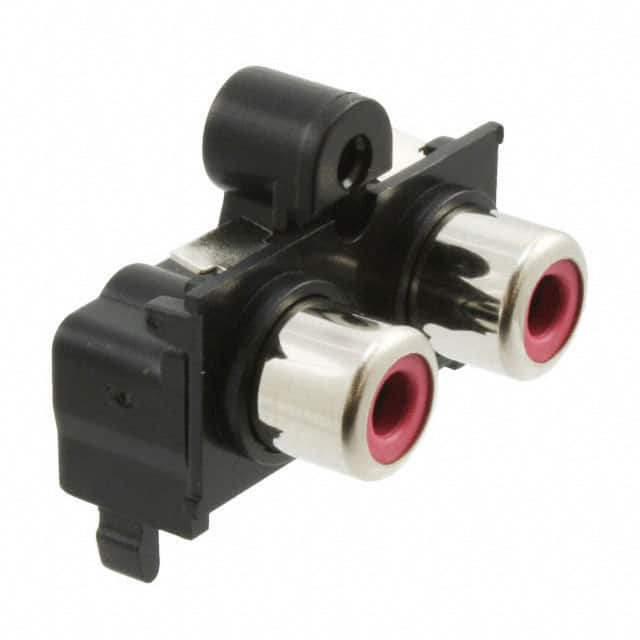

RCA JACK 2P 1 X 2 HORIZ TH RD/RD

Stock on Request

RCJ-2122 Description

Short technical summary and product information.

RCA JACK 2P 1 X 2 HORIZ TH RD/RD

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Audio Connectors
Manufacturer Name	CUI Devices
Actual Diameter	0.138" (3.50mm ID), 0.327" (8.30mm OD)
Connector Type	Phono (RCA) Jack
Features	Board Lock
Gender	Female
Industry Recognized Mating Diameter	3.20mm ID, 9.00mm OD (RCA)
Insulation Color	Red, Red
Internal Switch(s)	Does Not Contain Switch
Mounting Type	Through Hole, Right Angle
Number of Positions	2 Sets of 2 Conductors, 4 Contacts
Operating Temperature	-25°C ~ 70°C
Shielding	Unshielded
Signal Lines	Mono
Termination	Solder
