| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Diameter | |
| Height | |
| Inductance | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Package Type | |
| Saturation Current (Maximum @ Inductance decreases to 90% of its initial value) | |
| Saturation Current (Maximum) | |
| Shielding | |
| Tape & Reel | |
| Temperature Rise Current (Maximum @ DC current at which the temperature rise is △t＝20℃ (Ta＝20℃) | |
| Temperature Rise Current (Maximum) | |
| Tolerance | |
| Type | |
| dcr (Maximum @ 20 ℃) | |
| inductance (Maximum @ 1 kHz) |

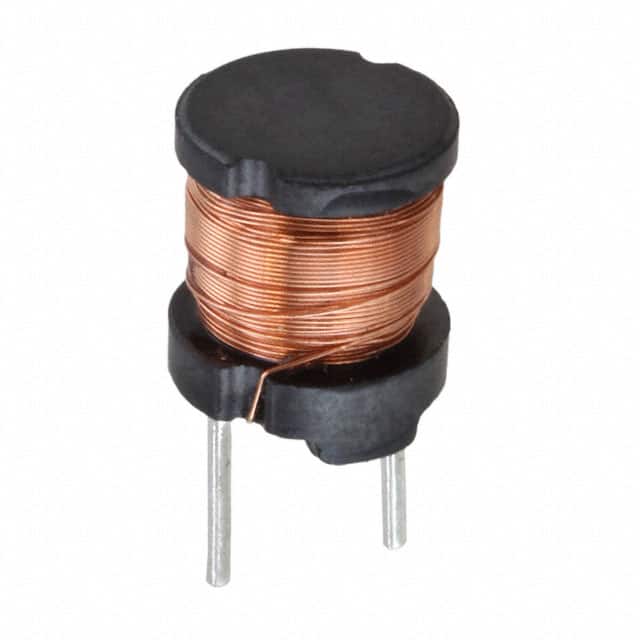

This RCH895NP-822K fixed inductor from Sumida Corp is a wirewound, drum core type with magnetic unshielding. It offers an inductance of 8.2mH with a tolerance of ±10% and a maximum DC resistance of 15.3 Ohms at 20℃. The current rating is 75mA.
Designed for through-hole mounting, this component has a compact size with dimensions of 9.50mm in height and 7.80mm in diameter. It operates across a wide temperature range of -40°C to +100°C, making it suitable for various environmental conditions.
Applications for this inductor include DC-DC converters in devices such as printers, LCD TVs, and copy machines. The construction utilizes a ferrite core and is packaged in a box.
Key electrical characteristics include a saturation current of 0.75A and a temperature rise current of 0.61A. The component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance of the RCH895NP-822K is 8.2 mH with a tolerance of ±10%.
The maximum DC resistance (DCR) for the RCH895NP-822K is 15.3 Ohms at 20℃.
The current rating for the RCH895NP-822K is 75 mA.
The operating temperature range for the RCH895NP-822K is -40°C to +100°C.
The RCH895NP-822K has a height of 9.50mm and a diameter of 7.80mm.
No, the RCH895NP-822K is magnetically unshielded.
The RCH895NP-822K uses a ferrite drum core.
