| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,900 pcs
|
1900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Diameter | |
| Frequency | |
| Height | |
| Inductance | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Saturation Current | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Rise Current | |
| Tolerance | |
| Type |

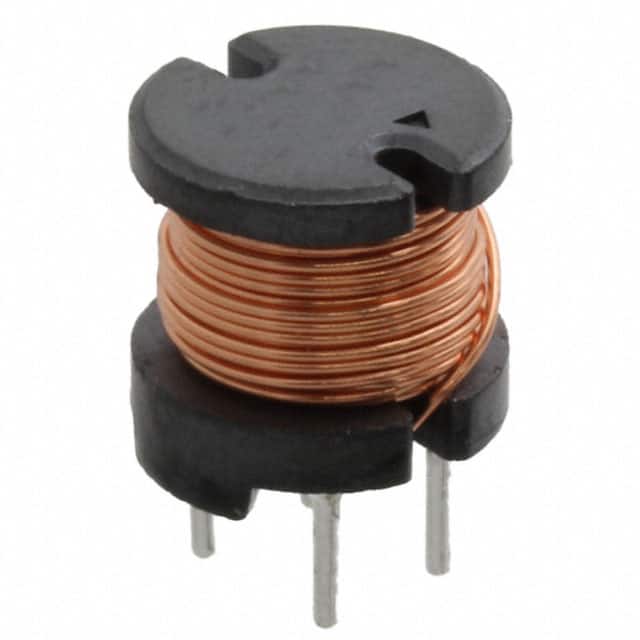

The Sumida RCH110NP-331K is a fixed inductor designed for DC-DC converter applications. It features a ferrite drum core construction and is magnetically unshielded.
This inductor offers an inductance value of 330 µH with a tolerance of ±10%. It has a maximum DC resistance (DCR) of 520mΩ and a current rating of 930 mA. The operating temperature range is -40°C to +100°C.
With dimensions of 10.5mm x 10.5mm x 10.5mm, the RCH110NP-331K is suitable for through-hole mounting. It is packaged in boxes of 100 pieces.
Applications for this inductor include printers, LCD TVs, DVD players, copy machines, and mainboards of compounding machines.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 330 µH with a tolerance of ±10%.
The maximum current rating is 930 mA.
The maximum DC resistance is 520mΩ.
The operating temperature range is -40°C to +100°C.
It is a through-hole mounted component.
It uses a ferrite drum core construction and is wirewound.
The standard package quantity is 100 pieces per box.
