| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

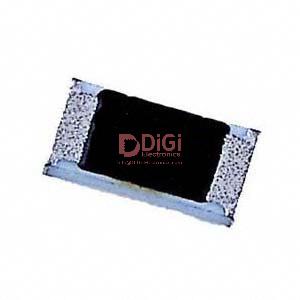

This Vishay Dale RCG040222K0JNED is a surface mount chip resistor designed for various electronic applications. It features a resistance value of 22 kOhms with a 5% tolerance, ensuring reliable performance in circuits. The resistor has a power rating of 0.063W (1/16W) and is constructed with thick film technology.
Operating within a wide temperature range of -55°C to 155°C, this component is suitable for demanding environments. It comes in a compact 0402 (1005 Metric) package, making it ideal for space-constrained designs. The component also meets automotive AEC-Q200 standards, indicating its suitability for automotive applications.
Mounting is done via surface mount technology, and it has two terminations. The dimensions are 1.00mm in length, 0.50mm in width, and 0.40mm in height.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance of the RCG040222K0JNED resistor is 22 kOhms.
The tolerance of the RCG040222K0JNED resistor is ±5%.
The power rating of the RCG040222K0JNED resistor is 0.063W, or 1/16W.
The operating temperature range for the RCG040222K0JNED resistor is -55°C to 155°C.
The RCG040222K0JNED resistor is supplied in a 0402 (1005 Metric) package.
Yes, the RCG040222K0JNED resistor is qualified to automotive AEC-Q200 standards.
