| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
749 pcs
|
749 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Halogen Free | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

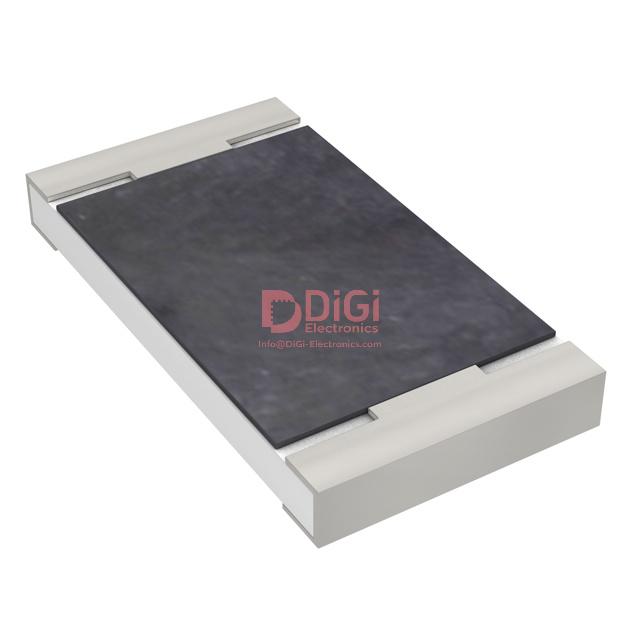

The Yageo RC2010FK-0715RL is a surface mount chip resistor from the RC_L series. It features a resistance value of 15 Ohms with a tight tolerance of ±1%. The component is rated for 0.75W of power and operates within a temperature range of -55°C to 155°C.
This resistor is constructed using a thick film composition and is designed for general-purpose applications. It comes in a 2010 (5025 Metric) package with dimensions of 5.00mm x 2.50mm. The operating temperature coefficient is ±100ppm/°C.
Key electrical characteristics include its 15 Ohm resistance and 1% tolerance, making it suitable for various circuit designs. The 0.75W power rating ensures reliable performance under typical load conditions. The thick film technology provides stability and durability.
The surface mount design facilitates automated assembly processes. The 2010 package size offers a balance between component size and power handling capabilities. This resistor is also RoHS compliant and Halogen Free.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 15 Ohms.
The tolerance is ±1%.
The power rating is 0.75W, or 3/4W.
The temperature coefficient is ±100ppm/°C.
The operating temperature range is -55°C to 155°C.
It is a 2010 (5025 Metric) package.
The product is listed as RoHS3 Compliant.
