| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Contact Size | |
| Contact Termination | |
| Contact_Retention_Force | |
| Current Rating | |
| Insertion Force | |
| Pin or Socket | |
| SVHC Present | |
| Type | |
| Wire Gauge | |
| Withdrawal Force |

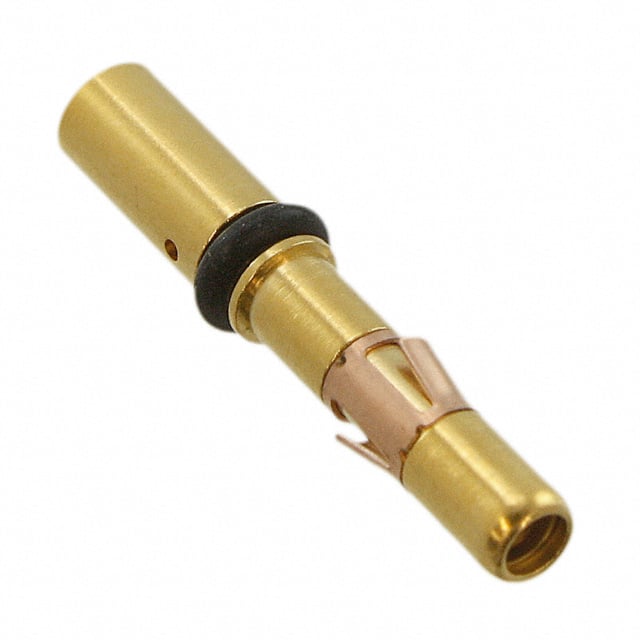

The RC14M25K is a machined socket contact from Souriau-Sunbank by Eaton, designed for 14 AWG wire with a gold-plated finish over a copper alloy body. This crimp termination contact features a #16 contact size (1.6mm diameter) and is suitable for high-reliability interconnect applications.
Electrical performance includes a maximum continuous current rating of 15A per contact (per NFF61030) and a low contact resistance of ≤3 mΩ. Mechanically, it offers a maximum insertion force of 3.5N, a minimum withdrawal force of 0.55N, and a contact retention force of 110N minimum.
Based on the RC series datasheet, this contact is compatible with UTS, UTO, VGE1, and 838 series connectors, making it well-suited for railway and industrial environments. Compliance with RoHS, REACH, and MSL 1 is declared but unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.95 | $3.95 |
| 10+ | $3.59 | $3.59 |
| 50+ | $3.40 | $3.40 |
| 100+ | $3.17 | $3.17 |
| 250+ | $2.77 | $2.77 |
| 500+ | $2.69 | $2.69 |
| 1,000+ | $2.31 | $2.31 |
| 2,500+ | $2.16 | $2.16 |
| 5,000+ | $2.06 | $2.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum continuous current per contact is 15A according to NFF61030.
It is designed for 14 AWG wire.
Copper alloy.
Gold plating with thickness 16.0µin (0.41µm).
Maximum insertion force 3.5N, minimum withdrawal force 0.55N.
Minimum 110N.
Maximum 3 mΩ.
