| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
74,146 pcs
|
74146 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4,584 pcs
|
4584 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
479 pcs
|
479 pcs | On Request | 1 | On Request | On Request | 23+ | On Request | On Request | |
|
59 pcs
|
59 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Halogen Free | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

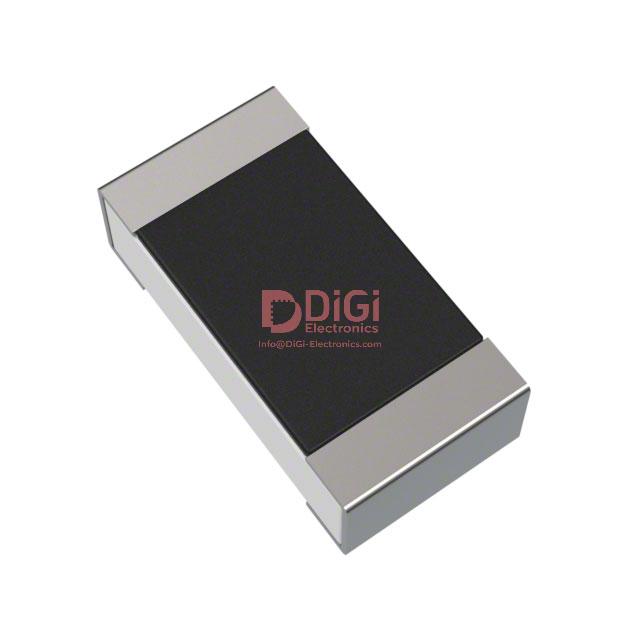

The Yageo RC0805JR-07820RL is a surface mount chip resistor designed for general-purpose applications. It features a resistance value of 820 Ohms with a tight tolerance of ±5%. The power rating for this component is 0.125W (1/8W), and it operates within a temperature range of -55°C to 155°C.
This resistor has a temperature coefficient of ±100ppm/°C. Its package size is 0805 (2012 Metric), with dimensions of 2.00mm in length and 1.25mm in width, and a height of 0.60mm. The component is constructed using thick film technology and is moisture resistant, classified under MSL 1.
It is RoHS3 compliant and Halogen Free, making it suitable for environmentally conscious designs. The component is suitable for all general-purpose applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 820 Ohms.
The tolerance is ±5%.
The power rating is 0.125W, or 1/8W.
The operating temperature range is -55°C to 155°C.
The package size is 0805 (2012 Metric).
Yes, it is RoHS3 compliant.
The MSL is 1.
