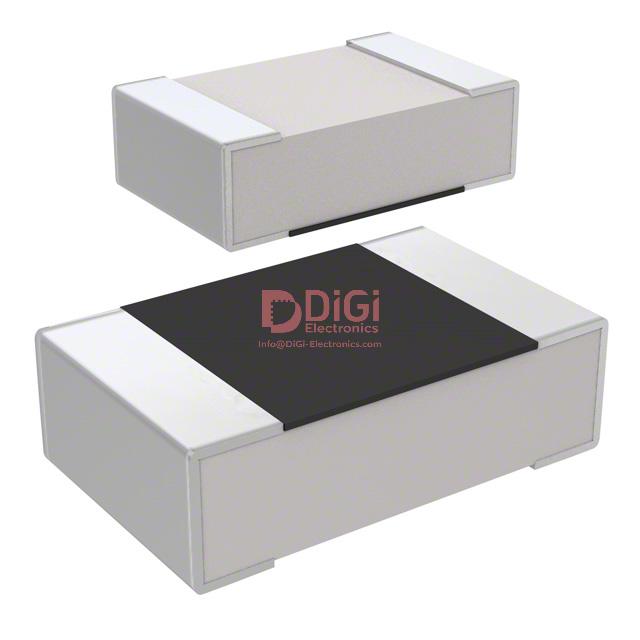

RC0805JR-0722RL The Yageo RC0805JR-0722RL is a surface mount chip resistor with a resistance of 22 Ohms and a tolerance of ±5%. It is rated for 1/8W power.
Mfr Part #:

RC0805JR-0722RL

Available from 2 distributors
Mfr Name: Yageo
Yageo
The Yageo RC0805JR-0722RL is a surface mount chip resistor with a resistance of 22 Ohms and a tolerance of ±5%. It is rated for 1/8W power.
✓ Total Stock: 4,292 pcs
$ Price Range: $0.02

RC0805JR-0722RL Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
2,250 pcs
$0.01 ℹ
Qty Price
0+ 0.01
2250 pcs $0.01
QtyPrice
0+ 0.01
1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
2,042 pcs
On Request
2042 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RC0805JR-0722RL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Power Rating
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RC0805JR-0722RL Description

Short technical summary and product information.

This Yageo RC0805JR-0722RL is a surface mount chip resistor designed for general-purpose applications. It features a resistance value of 22 Ohms with a tight tolerance of ±5% and a power rating of 0.125W (1/8W).



The resistor operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±100ppm/°C. Its thick film composition ensures reliability in various conditions. The component is housed in an 0805 (2012 Metric) package, measuring 2.00mm in length and 1.25mm in width, with a height of 0.60mm. It has two terminations.



This component is moisture resistant and comes in a Tape & Reel package. It is compliant with RoHS3 standards and has an MSL rating of 1 Unlimited. The REACH status is unaffected.

RC0805JR-0722RL Quick Information

Product Type: Chip Resistor
Series: RC_L
Canonical Name: Yageo RC0805JR-0722RL Chip Resistor
Subcategory: Surface Mount

RC0805JR-0722RL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RC0805JR-0722RL Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0805JR-0722RL Features

  • 22 Ohms resistance with ±5% tolerance.
  • Rated for 0.125W (1/8W) power.
  • Operates from -55°C to 155°C.
  • 0805 (2012 Metric) surface mount package.
  • Moisture resistant thick film construction.

RC0805JR-0722RL Applications

  • Suitable for general purpose surface mount circuits.
  • Used in moisture-resistant electronic assemblies.
  • Ideal for precision resistor networks in compact devices.
  • Applicable in temperature-sensitive applications within -55°C to 155°C.
  • Suitable for use in high-reliability consumer electronics.

RC0805JR-0722RL FAQs

5 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RC0805JR-0722RL?

The resistance value is 22 Ohms.

What is the tolerance of the RC0805JR-0722RL chip resistor?

The tolerance is ±5%.

What is the power rating for the RC0805JR-0722RL?

The power rating is 0.125W, or 1/8W.

What is the operating temperature range for this chip resistor?

The operating temperature range is -55°C to 155°C.

What package size is the RC0805JR-0722RL chip resistor?

The package size is 0805 (2012 Metric).
