| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,000 pcs
|
15000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Halogen Free | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Package / Case | |
| Power Rating | |
| Resistance | |
| Tape & Reel | |
| Tolerance |

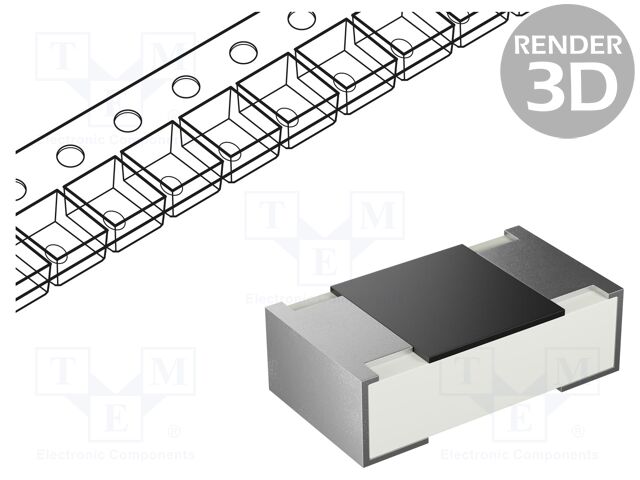

This PHYCOMP RC0805FR-076K81L is a surface mount chip resistor from the RC_L series. It features a resistance value of 6.81kΩ with a tight tolerance of ±1%. The resistor has a power rating of 0.125W and an operating voltage of up to 150V.
Constructed using a thick film process, this component is suitable for general-purpose applications. It comes in an 0805 imperial (2012 metric) case size and is designed for surface mounting. The operating temperature range is from -55°C to 155°C.
This resistor is compliant with RoHS3 and Halogen Free standards, making it suitable for environmentally conscious designs. It is supplied on a reel, with a standard package quantity of 5,000 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 6.81kΩ.
The tolerance is ±1%.
The power rating is 0.125W.
The operating temperature range is -55°C to 155°C.
The package size is 0805 Imperial (2012 Metric).
Yes, it is RoHS3 Compliant.
The MSL is 1 Unlimited.
