| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8,972 pcs
|
8972 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |||||||||
|
2,400 pcs
|
2400 pcs | On Request | 1 | On Request | On Request | 1749 | On Request | On Request | |||||||||
|
417 pcs
$0.05
|
417 pcs |
$0.05
|
1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

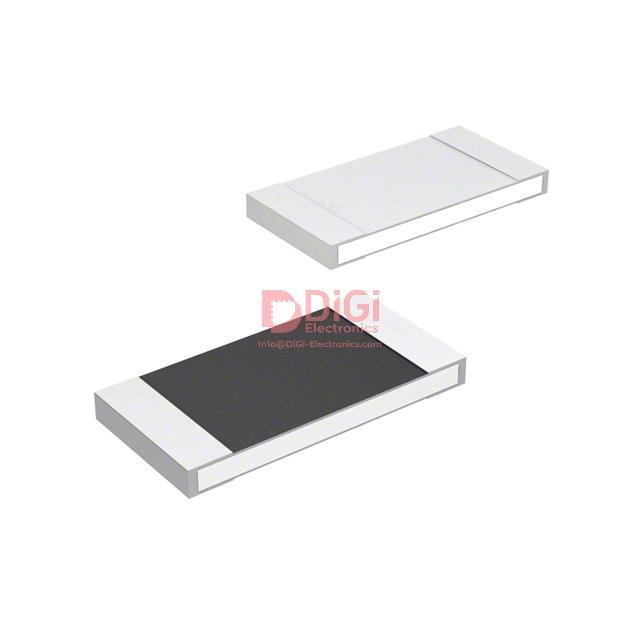

The Yageo RC0805FR-0769K8L is a surface mount chip resistor designed for general-purpose applications. It features a resistance value of 69.8 kΩ with a tight tolerance of ±1%, ensuring accurate circuit performance.
This component is rated for a power of 0.125W (1/8W) and operates within a temperature range of -55°C to 155°C. The temperature coefficient is ±100ppm/°C. The resistor utilizes a thick film composition and has 2 terminations.
Packaged in the common 0805 (2012 Metric) case size, it measures 2.00mm in length and 1.25mm in width, with a height of 0.60mm. The RC0805FR-0769K8L is also noted for being moisture resistant and has an MSL rating of 1 Unlimited. It complies with RoHS3 standards and is REACH unaffected.
This resistor is suitable for various electronic designs where space is a consideration and reliable performance is required. Its surface mount design facilitates automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 69.8 kΩ.
The tolerance is ±1%.
The power rating is 0.125W, or 1/8W.
The operating temperature range is -55°C to 155°C.
The package size is 0805 (2012 Metric).
Yes, it is RoHS3 Compliant.
The MSL is 1 Unlimited.
