| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
312 pcs
|
312 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
312 pcs
|
312 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Halogen Free | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

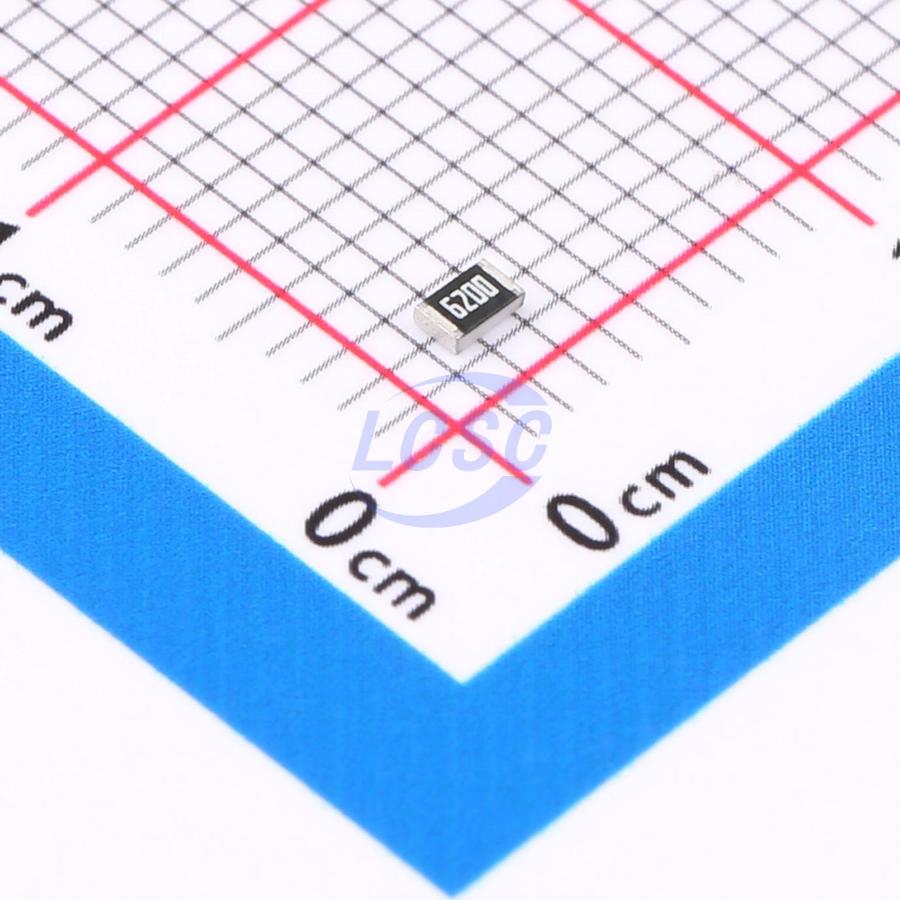

This Yageo RC0805FR-07620RL is a surface mount chip resistor belonging to the RC_L series. It features a resistance value of 620 Ohms with a tight tolerance of ±1%. The power rating for this component is 0.125W (1/8W), making it suitable for general-purpose applications.
The resistor operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±100ppm/°C. Its thick film composition ensures reliability. The component is housed in an 0805 (2012 Metric) package, measuring 2.00mm in length and 1.25mm in width, with a height of 0.60mm.
Designed for surface mounting, this resistor offers a moisture-resistant feature and is classified under MSL 1, indicating unlimited usability under standard conditions. It meets RoHS3 compliance and REACH Unaffected status, contributing to environmentally conscious designs. The component has 2 terminations.
This chip resistor is ideal for various general-purpose applications where precise resistance and reliability are required. Its standard 0805 package size facilitates automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 620 Ohms.
The tolerance is ±1%.
The power rating is 0.125W or 1/8W.
The temperature coefficient is ±100ppm/°C.
The operating temperature range is -55°C to 155°C.
The 0805 package measures 2.00mm in length, 1.25mm in width, and 0.60mm in height.
Yes, it is RoHS3 compliant.
