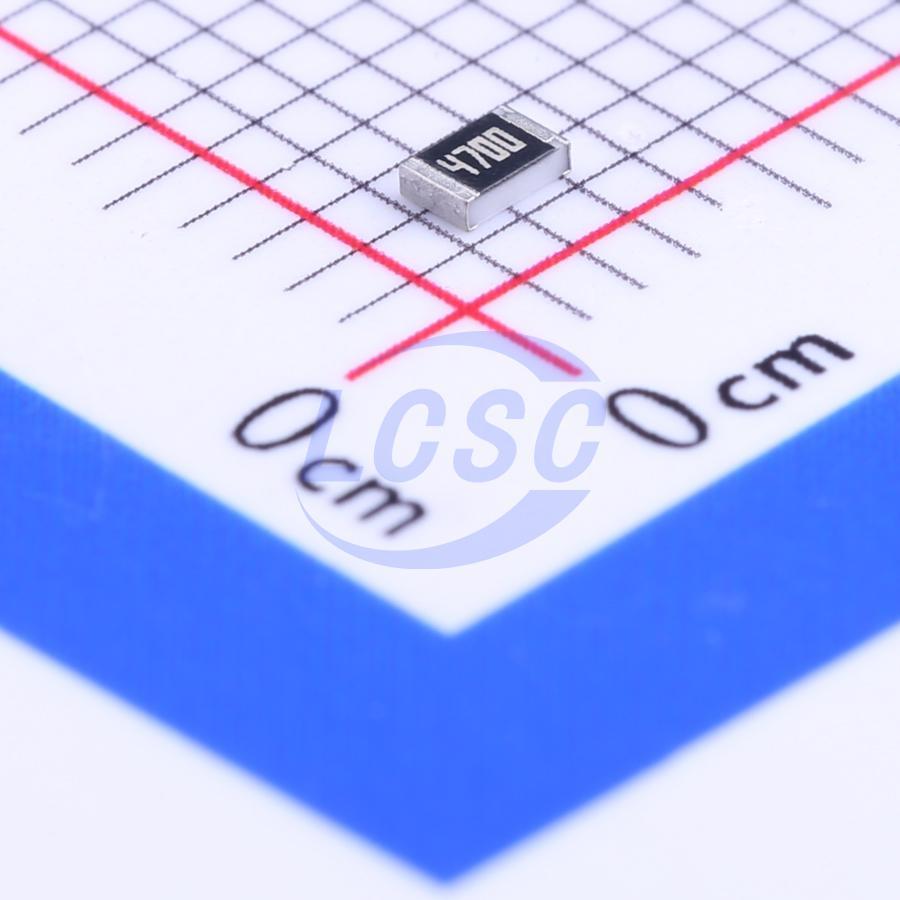

RC0805FR-07470RL This Yageo RC0805FR-07470RL is a surface mount chip resistor with a resistance of 470 Ohms and a tolerance of ±1%. It has a power rating of 1/8W and operates within a temperature range of -55°C to 155°C.
Mfr Part #:

RC0805FR-07470RL

Available from 5 distributors
Mfr Name: Yageo
Yageo
This Yageo RC0805FR-07470RL is a surface mount chip resistor with a resistance of 470 Ohms and a tolerance of ±1%. It has a power rating of 1/8W and operates within a temperature range of -55°C to 155°C.
✓ Total Stock: 33,812 pcs
$ Price Range: $0.02

RC0805FR-07470RL Available from 5 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RC0805FR-07470RL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Height
Length
Mounting Type
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RC0805FR-07470RL Description

Short technical summary and product information.

The Yageo RC0805FR-07470RL is a thick film chip resistor designed for general-purpose applications. It features a resistance value of 470 Ohms with a tight tolerance of ±1%. The component is rated for 1/8W of power and can operate across a wide temperature range from -55°C to 155°C, with a temperature coefficient of ±100ppm/°C.



This surface mount device comes in an 0805 (2012 Metric) package, measuring 2.00mm in length and 1.25mm in width, with a height of 0.60mm. It has two terminations and is constructed using a thick film process. The resistor is noted for its moisture resistance.



This component is suitable for various general-purpose applications where reliable resistance values are critical. Its surface mount design facilitates automated assembly processes on printed circuit boards.

RC0805FR-07470RL Quick Information

Product Type: Chip Resistor - Surface Mount
Series: RC_L
Canonical Name: Yageo RC0805FR-07470RL Thick Film Chip Resistor 470 Ohm ±1% 1/8W
Subcategory: Chip Resistor

RC0805FR-07470RL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RC0805FR-07470RL Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0805FR-07470RL Features

  • 470 Ohm resistance with ±1% tolerance.
  • 1/8W power rating suitable for general use.
  • Wide operating temperature range of -55°C to 155°C.
  • Surface mount 0805 package for automated assembly.
  • Thick film composition for reliable performance.

RC0805FR-07470RL Applications

  • Used in general purpose circuits.
  • Suitable for automated PCB assembly.
  • Applications requiring stable resistance values.
  • Environments where moisture resistance is needed.

RC0805FR-07470RL FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RC0805FR-07470RL?

The resistance value is 470 Ohms.

What is the tolerance of this Yageo chip resistor?

The tolerance is ±1%.

What is the power rating for the RC0805FR-07470RL?

The power rating is 0.125W or 1/8W.

What is the operating temperature range for this component?

The operating temperature range is -55°C to 155°C.

What package size is the RC0805FR-07470RL?

It is in an 0805 (2012 Metric) package.

What is the temperature coefficient of resistance?

The temperature coefficient is ±100ppm/°C.
