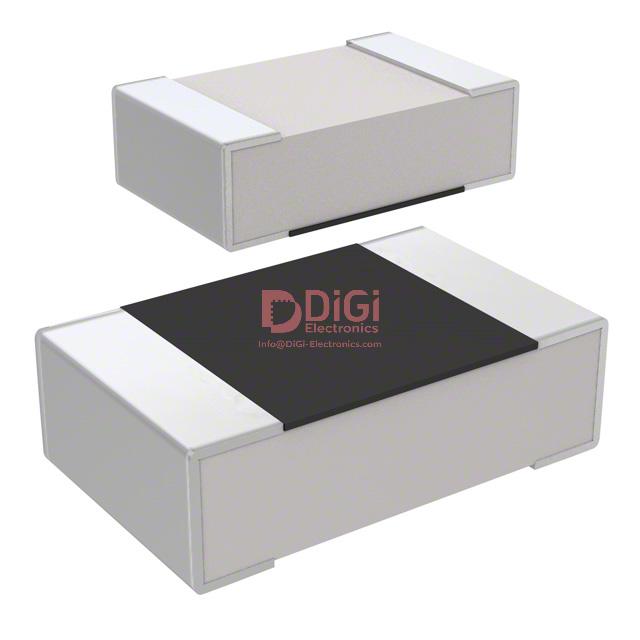

RC0805FR-073R3L This Yageo RC0805FR-073R3L is a surface mount chip resistor with a resistance of 3.3 Ohms and a tolerance of ±1%. It features a 0805 package size.
Mfr Part #:

RC0805FR-073R3L

Available from 2 distributors
Mfr Name: Yageo
Yageo
This Yageo RC0805FR-073R3L is a surface mount chip resistor with a resistance of 3.3 Ohms and a tolerance of ±1%. It features a 0805 package size.
✓ Total Stock: 18,602 pcs
$ Price Range: $0.02

RC0805FR-073R3L Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
9,301 pcs
On Request
9301 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
9,301 pcs
On Request
9301 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RC0805FR-073R3L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RC0805FR-073R3L Description

Short technical summary and product information.

The Yageo RC0805FR-073R3L is a surface mount chip resistor designed for general-purpose applications. It offers a resistance value of 3.3 Ohms with a tight tolerance of ±1%, ensuring precise circuit performance.



This component is rated for 0.125W (1/8W) of power and operates within a temperature range of -55°C to 155°C. The temperature coefficient is ±200ppm/°C.



Packaged in the common 0805 (2012 Metric) size, it measures 2.00mm in length and 1.25mm in width, with a height of 0.60mm. The resistor is constructed using thick film technology and features moisture-resistant properties. It has 2 terminations.



The RC0805FR-073R3L is RoHS3 compliant and has an MSL rating of 1 Unlimited.

RC0805FR-073R3L Quick Information

Product Type: Chip Resistor
Series: RC_L
Canonical Name: RC0805FR-073R3L Chip Resistor
Subcategory: Chip Resistor - Surface Mount

RC0805FR-073R3L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RC0805FR-073R3L Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0805FR-073R3L Features

  • 3.3 Ohm resistance with ±1% tolerance.
  • Rated for 0.125W (1/8W) power.
  • Operates from -55°C to 155°C.
  • 0805 (2012 Metric) surface mount package.
  • Thick film construction with moisture resistance.

RC0805FR-073R3L Applications

  • Suitable for general purpose electronic circuits.
  • Used in moisture-resistant surface mount applications.
  • Ideal for space-constrained PCB designs.
  • Applicable in precision resistor networks.
  • Suitable for high-temperature environments up to 155°C.

RC0805FR-073R3L FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RC0805FR-073R3L chip resistor?

The resistance value is 3.3 Ohms.

What is the tolerance of the Yageo RC0805FR-073R3L resistor?

The tolerance is ±1%.

What is the power rating for the RC0805FR-073R3L?

The power rating is 0.125W, or 1/8W.

What is the operating temperature range for this chip resistor?

The operating temperature range is -55°C to 155°C.

What are the dimensions of the 0805 package?

The 0805 package has dimensions of 2.00mm in length, 1.25mm in width, and 0.60mm in height.

What is the temperature coefficient of the RC0805FR-073R3L?

The temperature coefficient is ±200ppm/°C.
