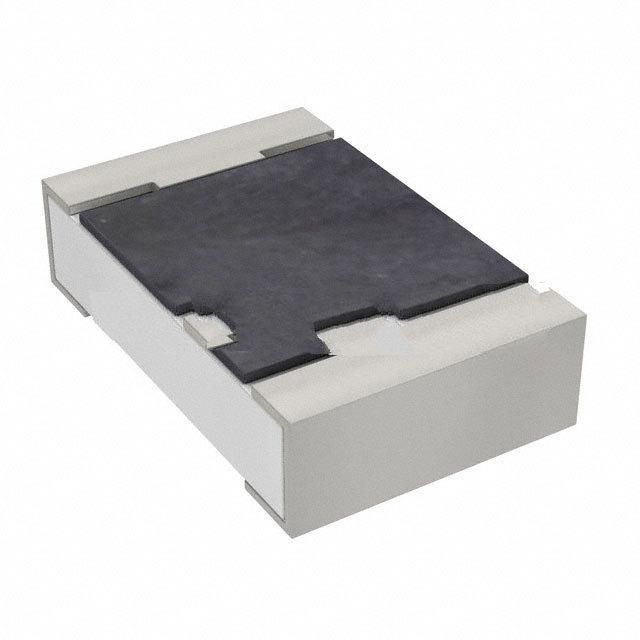

RC0805FR-073K65L The Yageo RC0805FR-073K65L is a surface mount chip resistor with a resistance of 3.65 kΩ and a tolerance of ±1%. It has a power rating of 1/8W.
Mfr Part #:

RC0805FR-073K65L

Available from 1 distributors
Mfr Name: Yageo
Yageo
The Yageo RC0805FR-073K65L is a surface mount chip resistor with a resistance of 3.65 kΩ and a tolerance of ±1%. It has a power rating of 1/8W.
✓ Total Stock: 4,164 pcs
$ Price Range: $0.02

RC0805FR-073K65L Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
4,164 pcs
On Request
4164 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RC0805FR-073K65L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RC0805FR-073K65L Description

Short technical summary and product information.

This Yageo RC0805FR-073K65L is a thick film chip resistor designed for general-purpose applications. It features a resistance value of 3.65 kΩ with a tight tolerance of ±1%, making it suitable for precise circuit applications.



The resistor is rated for 1/8W (0.125W) of power and has a temperature coefficient of ±100ppm/°C, operating within a temperature range of -55°C to 155°C.



Packaged in an 0805 (2012 Metric) surface mount case, it measures 2.00mm in length and 1.25mm in width, with a height of 0.60mm. The component has 2 terminations and is moisture resistant.



This component is compliant with RoHS3 standards and has an MSL rating of 1.

RC0805FR-073K65L Quick Information

Product Type: Chip Resistor
Series: RC_L
Canonical Name: Yageo RC0805FR-073K65L Thick Film Chip Resistor
Subcategory: Surface Mount

RC0805FR-073K65L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RC0805FR-073K65L Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0805FR-073K65L Features

  • 3.65 kΩ resistance with ±1% tolerance.
  • 1/8W power rating at 0.125W.
  • ±100ppm/°C temperature coefficient.
  • 0805 surface mount package.
  • Moisture resistant and MSL 1 rated.

RC0805FR-073K65L Applications

  • Suitable for general purpose surface mount resistors.
  • Used in electronic circuit design requiring precise resistance.
  • Ideal for moisture-resistant resistor applications.
  • Applicable in compact PCB designs with 0805 package.
  • Suitable for high-temperature thermal environments.

RC0805FR-073K65L FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RC0805FR-073K65L?

The resistance value is 3.65 kΩ.

What is the tolerance of the Yageo RC0805FR-073K65L chip resistor?

The tolerance is ±1%.

What is the power rating for the RC0805FR-073K65L?

The power rating is 1/8W (0.125W).

What is the temperature coefficient of this resistor?

The temperature coefficient is ±100ppm/°C.

What are the operating temperature limits for the RC0805FR-073K65L?

The operating temperature range is -55°C to 155°C.

What is the package size of the Yageo RC0805FR-073K65L?

The package size is 0805 (2012 Metric).

Is the RC0805FR-073K65L RoHS compliant?

Yes, it is RoHS3 Compliant.
