| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,000 pcs
|
15000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
15,000 pcs
|
15000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Halogen Free | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

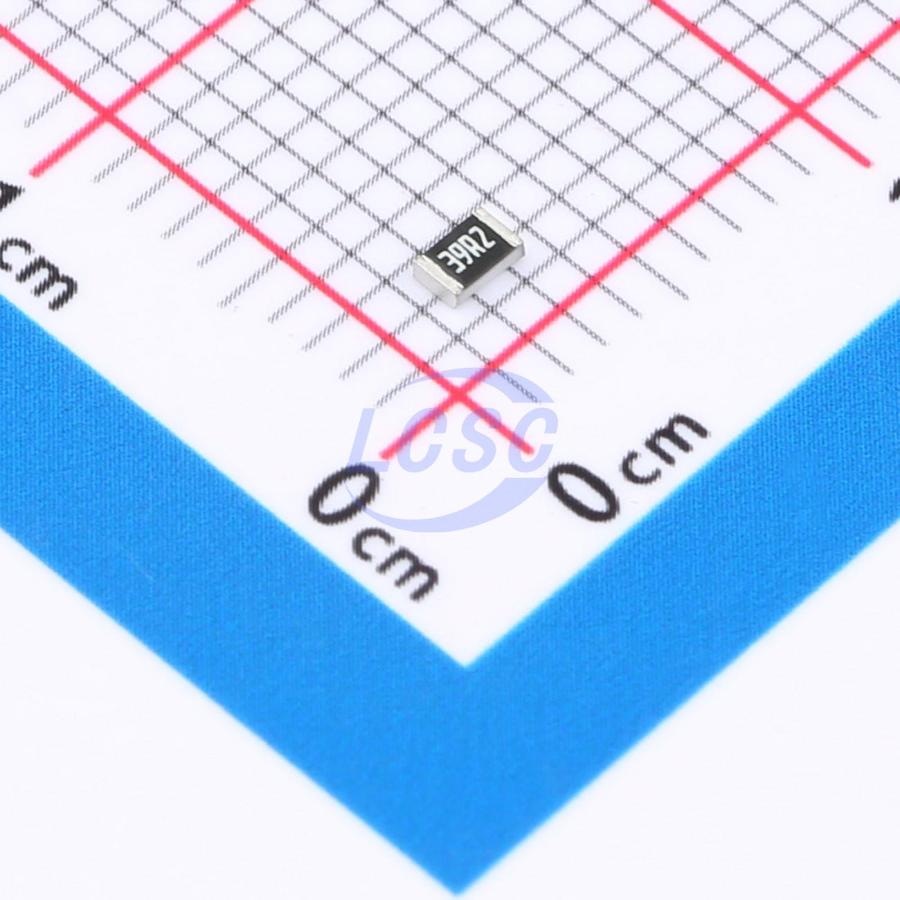

The Yageo RC0805FR-0739R2L is a surface mount chip resistor designed for general-purpose applications. It features a thick film composition and is housed in an 0805 (2012 Metric) package.
Key electrical characteristics include a resistance value of 39.2 Ohms with a tight tolerance of ±1%. The power rating is 1/8W (0.125W), and it has a temperature coefficient of ±100ppm/°C. The operating temperature range is from -55°C to 155°C.
Mechanical dimensions for this component are a height of 0.60mm (0.024"), a length of 2.00mm (0.079"), and a width of 1.25mm (0.049"). It has two terminations and is classified as Moisture Resistant.
This resistor is RoHS3 Compliant and Halogen Free, with a Moisture Sensitivity Level (MSL) of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance of the Yageo RC0805FR-0739R2L is 39.2 Ohms.
The tolerance for this chip resistor is ±1%.
The power rating is 1/8W (0.125W).
The temperature coefficient is ±100ppm/°C.
The operating temperature range is -55°C to 155°C.
The 0805 package has a length of 2.00mm (0.079") and a width of 1.25mm (0.049").
This component is RoHS3 Compliant.
