| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,739 pcs
|
4739 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

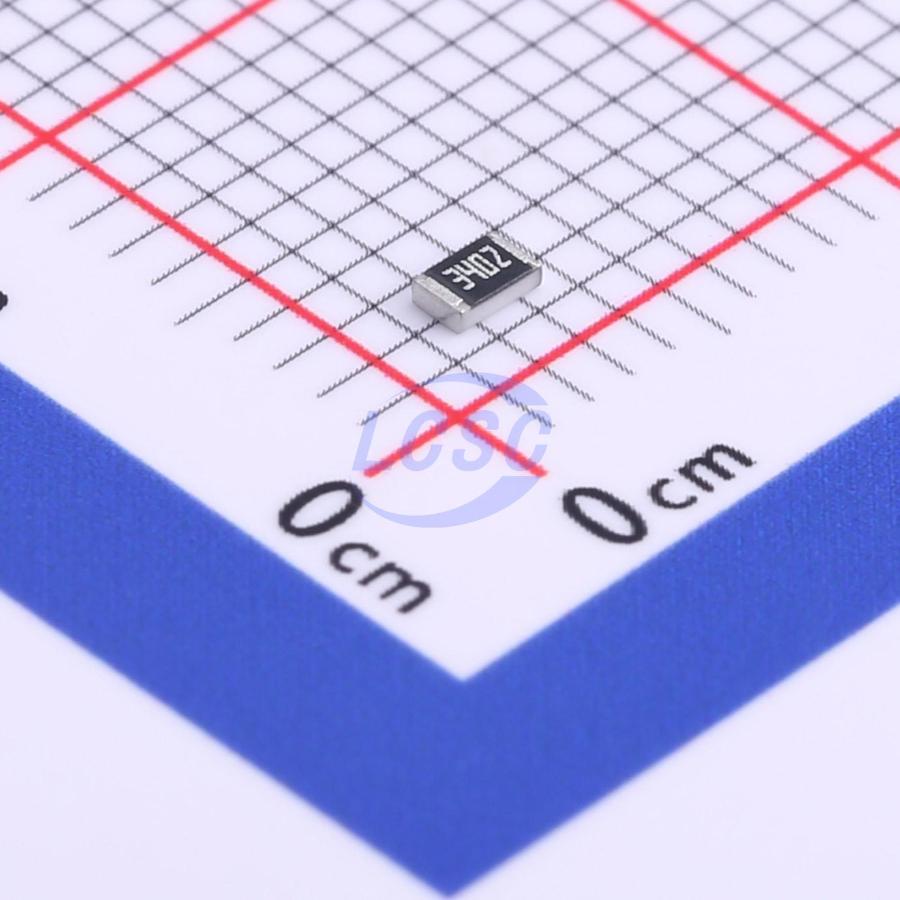

This Yageo RC0805FR-0734KL is a thick film chip resistor designed for surface mount applications. It offers a resistance value of 34 kΩ with a tight tolerance of ±1%, making it suitable for general-purpose applications.
The resistor has a power rating of 0.125W (1/8W) and a temperature coefficient of ±100ppm/°C, ensuring stable performance across a wide operating temperature range of -55°C to 155°C.
Packaged in the common 0805 (2012 Metric) case size, it measures 2.00mm in length and 1.25mm in width, with a height of 0.60mm. The component has two terminations and is moisture resistant, with an MSL rating of 1.
This component is RoHS3 compliant and REACH unaffected, making it suitable for various electronic designs where reliability and environmental considerations are important.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 34 kΩ.
The tolerance is ±1%.
The power rating is 0.125W, or 1/8W.
The temperature coefficient is ±100ppm/°C.
The operating temperature range is -55°C to 155°C.
The resistor has dimensions of 2.00mm (Length) x 1.25mm (Width) x 0.60mm (Height).
It is in the 0805 (2012 Metric) package size.
