| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
29,344 pcs
|
29344 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
15,999 pcs
|
15999 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
15,990 pcs
|
15990 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

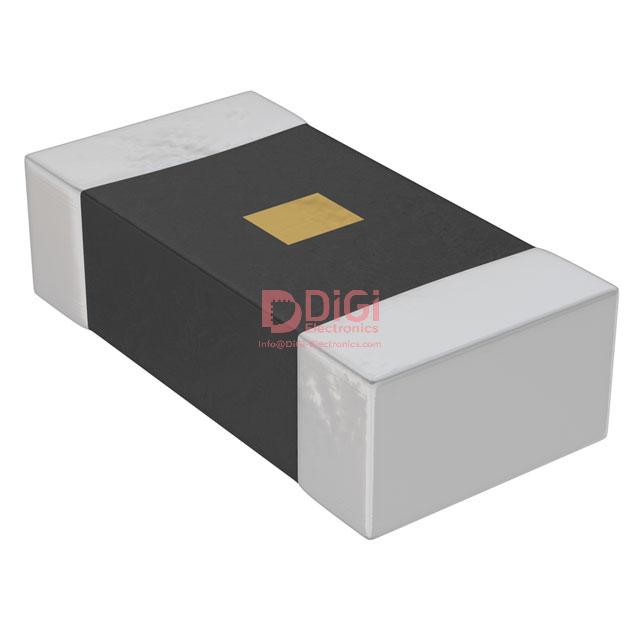

This Yageo RC0805FR-07301KL is a surface mount chip resistor designed for general-purpose applications. It features a resistance value of 301 kΩ with a tight tolerance of ±1%. The resistor is rated for 0.125W (1/8W) of power and operates within a temperature range of -55°C to 155°C.
The component is constructed using thick film technology and comes in an 0805 (2012 Metric) package. Its dimensions are 2.00mm in length and 1.25mm in width, with a height of 0.60mm. The resistor has two terminations and is suitable for surface mounting.
This part is RoHS3 compliant and has an MSL rating of 1, indicating unlimited usability under standard conditions. It is also REACH unaffected. The component is designed for high component and equipment reliability, contributing to saving PCB space.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 301 kΩ.
The tolerance is ±1%.
The power rating is 0.125W, or 1/8W.
The operating temperature range is -55°C to 155°C.
The resistor is in an 0805 (2012 Metric) package.
