| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30,000 pcs
|
30000 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
12,967 pcs
|
12967 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,287 pcs
|
3287 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,003 pcs
|
3003 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Halogen Free | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

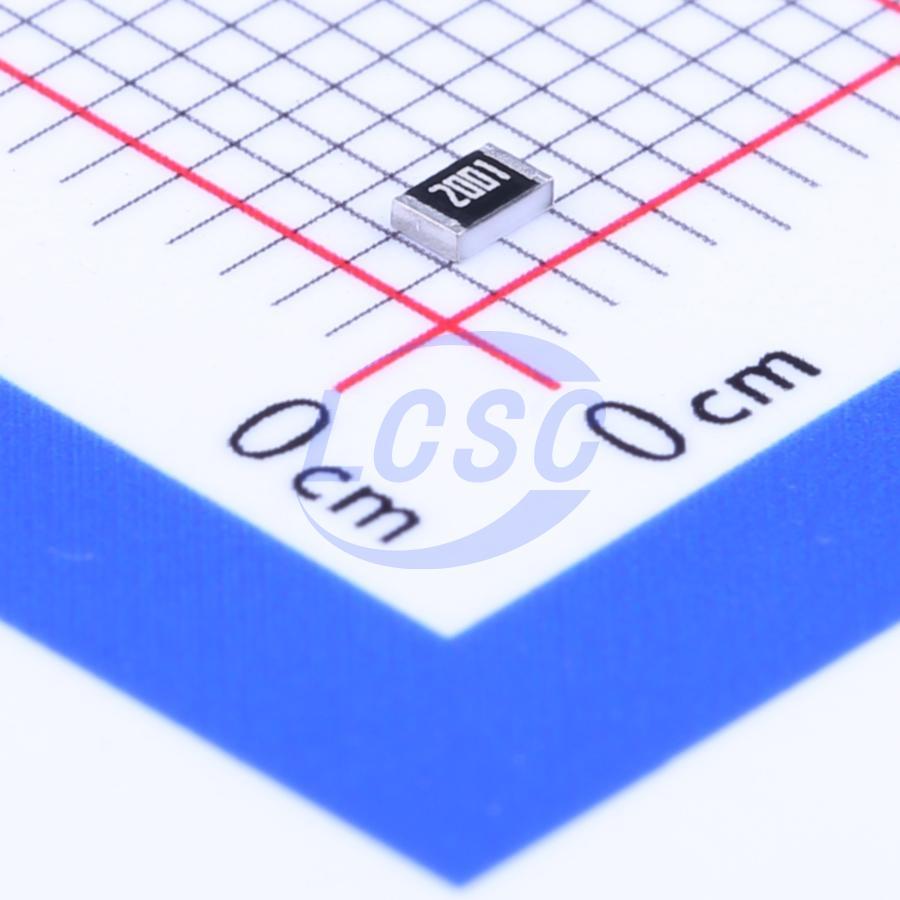

The Yageo RC0805FR-072KL is a surface mount chip resistor from the RC_L series. It features a thick film construction, providing a resistance value of 2 kΩ with a tight tolerance of ±1%. The power rating for this component is 1/8W (0.125W).
Designed for general-purpose applications, this resistor operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±100ppm/°C. The component is housed in an 0805 (2012 Metric) package, measuring 2.00mm in length and 1.25mm in width, with a height of 0.60mm.
This part is RoHS3 compliant and Halogen Free, making it suitable for environmentally conscious designs. It also meets REACH Unaffected status and has a Moisture Sensitivity Level (MSL) of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 2 kΩ.
The tolerance is ±1%.
The power rating is 0.125W or 1/8W.
It operates from -55°C to 155°C.
It uses an 0805 (2012 metric) package.
Yes, it is moisture resistant.
Yes, it is RoHS3 compliant.
