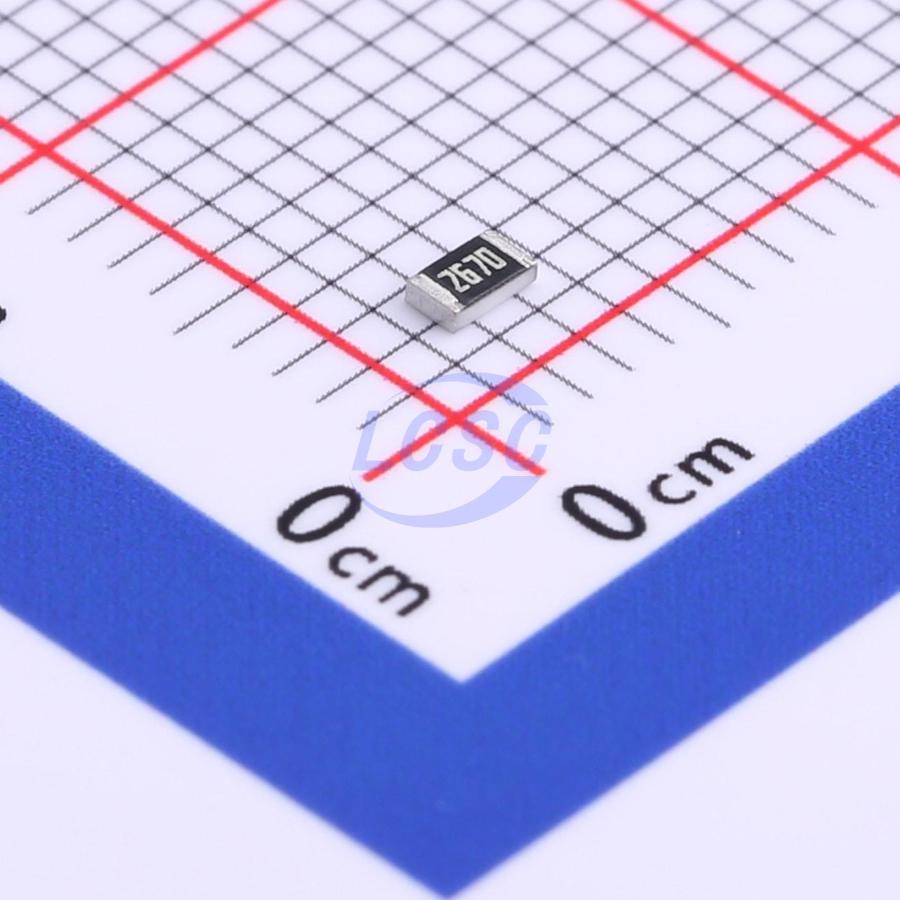

RC0805FR-07267RL The Yageo RC0805FR-07267RL is a thick film chip resistor with a resistance of 267 Ohms and a tolerance of ±1%. It is designed for surface mount applications.
Mfr Part #:

RC0805FR-07267RL

Available from 3 distributors
Mfr Name: Yageo
Yageo
The Yageo RC0805FR-07267RL is a thick film chip resistor with a resistance of 267 Ohms and a tolerance of ±1%. It is designed for surface mount applications.
✓ Total Stock: 7,719 pcs
$ Price Range: $0.02

RC0805FR-07267RL Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
4,275 pcs
On Request
4275 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
1,722 pcs
On Request
1722 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
1,722 pcs
On Request
1722 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RC0805FR-07267RL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Height
Length
Mounting Type
Number of Terminations
Operating Temperature
Power (Watts)
Power Rating
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RC0805FR-07267RL Description

Short technical summary and product information.

This Yageo RC0805FR-07267RL is a surface mount chip resistor from the RC_L series. It features a resistance value of 267 Ohms with a tight tolerance of ±1%. The power rating is 1/8W (0.125W), and it operates across a wide temperature range of -55°C to 155°C.



The resistor has a thick film composition and is housed in an 0805 (2012 Metric) package. Its dimensions are 2.00mm in length and 1.25mm in width, with a height of 0.60mm. It has two terminations and is suitable for general-purpose applications.



This component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited, indicating its suitability for various environmental conditions. The REACH status is unaffected.



Key specifications include a temperature coefficient of ±100ppm/°C, making it reliable for stable circuit performance. The 0805 package size is common in many electronic designs, offering a balance between size and power handling.

RC0805FR-07267RL Quick Information

Product Type: Chip Resistor - Surface Mount
Series: RC_L
Canonical Name: RC0805FR-07267RL Thick Film Chip Resistor 267 Ohm ±1% 1/8W Surface Mount
Subcategory: Chip Resistor - Surface Mount

RC0805FR-07267RL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RC0805FR-07267RL Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0805FR-07267RL Features

  • 267 Ohm resistance with ±1% tolerance.
  • 1/8W power rating for general applications.
  • Wide operating temperature range: -55°C to 155°C.
  • 0805 (2012 Metric) surface mount package.
  • RoHS3 compliant and MSL 1 rated.

RC0805FR-07267RL Applications

  • Suitable for general purpose applications.
  • Ideal for circuits requiring stable resistance.
  • Used in compact electronic designs.
  • Component for automated assembly processes.

RC0805FR-07267RL FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RC0805FR-07267RL resistor?

The resistance value is 267 Ohms.

What is the tolerance of the Yageo RC0805FR-07267RL resistor?

The tolerance is ±1%.

What is the power rating for the RC0805FR-07267RL chip resistor?

The power rating is 0.125W, or 1/8W.

What is the operating temperature range for this resistor?

The operating temperature range is -55°C to 155°C.

What is the package size of the RC0805FR-07267RL resistor?

The package size is 0805 (2012 Metric).

Is the Yageo RC0805FR-07267RL RoHS compliant?

Yes, it is RoHS3 compliant.

What is the Moisture Sensitivity Level (MSL) for this component?

The MSL is 1 Unlimited.
