| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1,200 pcs
$0.01
|
1200 pcs |
$0.01
|
1 | On Request | On Request | On Request | On Request | On Request | |||||||||
|
35 pcs
|
35 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Resistance | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

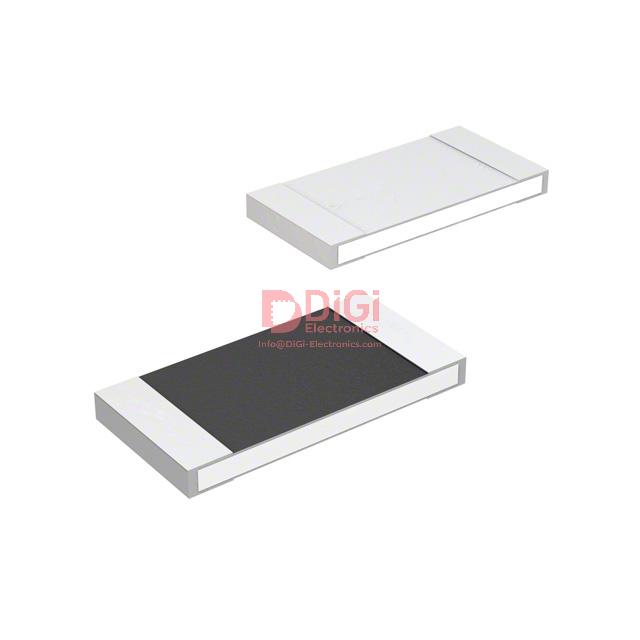

This Yageo RC0805FR-07226KL is a thick film chip resistor designed for surface mount applications. It offers a resistance value of 226 kOhms with a tight tolerance of ±1%, making it suitable for general-purpose applications where precise resistance is required.
The resistor has a power rating of 0.125W (1/8W) and operates within a temperature range of -55°C to 155°C. Its compact 0805 (2012 Metric) package dimensions, measuring 2.00mm in length and 1.25mm in width, allow for significant space savings on printed circuit boards.
Key electrical characteristics include a temperature coefficient of ±100ppm/°C. The component is constructed using a thick film process, ensuring reliability and performance. It is also noted for its moisture resistance and is classified under MSL 1, indicating unlimited usability under standard conditions.
This surface mount resistor is ideal for various electronic circuits requiring stable and accurate resistance values. Its robust construction and adherence to environmental standards make it a reliable choice for diverse design needs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 226 kOhms.
The tolerance is ±1%.
The power rating is 0.125W, or 1/8W.
The operating temperature range is -55°C to 155°C.
The resistor is in an 0805 (2012 Metric) package.
The temperature coefficient is ±100ppm/°C.
