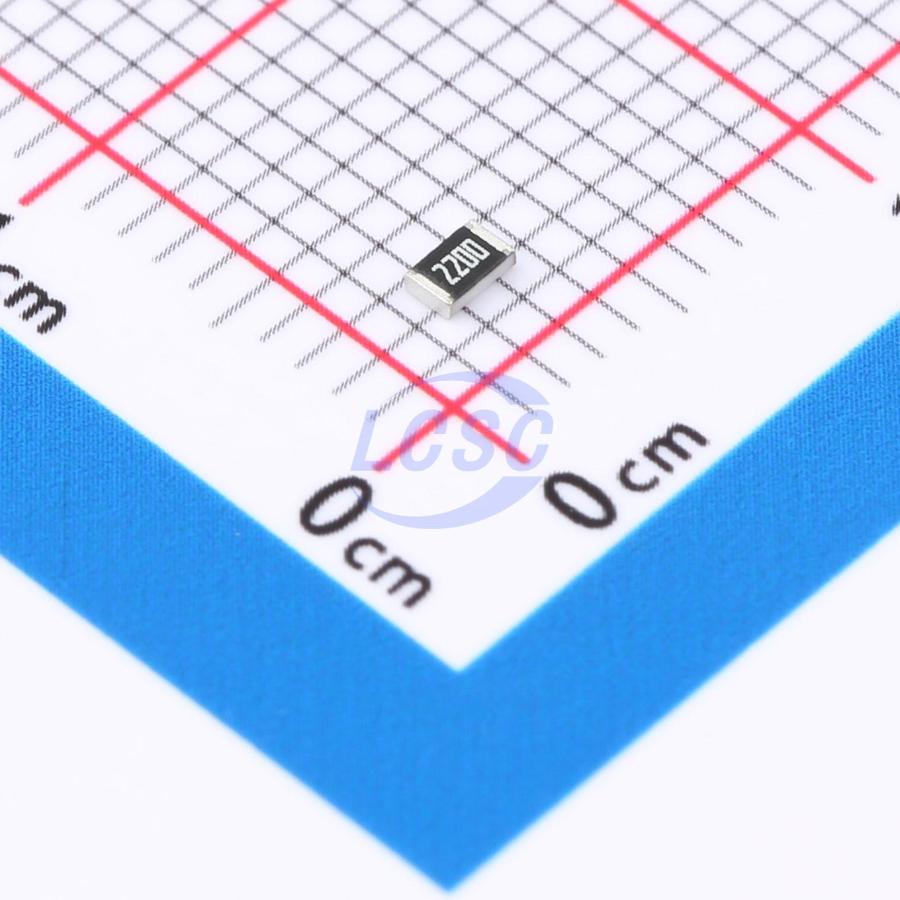

RC0805FR-07220RL The Yageo RC0805FR-07220RL is a surface mount chip resistor with a resistance of 220 Ohms and a tolerance of ±1%. It has a power rating of 1/8W and operates within a temperature range of -55°C to 155°C.
Mfr Part #:

RC0805FR-07220RL

Available from 5 distributors
Mfr Name: Yageo
Yageo
The Yageo RC0805FR-07220RL is a surface mount chip resistor with a resistance of 220 Ohms and a tolerance of ±1%. It has a power rating of 1/8W and operates within a temperature range of -55°C to 155°C.
✓ Total Stock: 16,987 pcs
$ Price Range: $0.02

RC0805FR-07220RL Available from 5 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
9,218 pcs
On Request
9218 pcs On Request 1 On Request On Request On Request On Request On Request
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
4,965 pcs
On Request
4965 pcs On Request 1 On Request On Request On Request On Request On Request
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
2,500 pcs
On Request
2500 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
301 pcs
$0.01 ℹ
Qty Price
0+ 0.01
301 pcs $0.01
QtyPrice
0+ 0.01
1 On Request On Request On Request On Request On Request
Trace Tec ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RC0805FR-07220RL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Composition
Features
Height
Industrial Grade
Length
Medical Grade
Military Grade
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RC0805FR-07220RL Description

Short technical summary and product information.

The Yageo RC0805FR-07220RL is a surface mount chip resistor designed for general-purpose applications. It features a resistance value of 220 Ohms with a tight tolerance of ±1%, ensuring accurate circuit performance.



This component is rated for 1/8W (0.125W) power dissipation and can operate across a wide temperature range from -55°C to 155°C, with a temperature coefficient of ±100ppm/°C. The resistor is constructed using thick film technology.



Packaged in the common 0805 (2012 Metric) case size, it is suitable for automated assembly processes. The dimensions are 2.00mm in length and 1.25mm in width, with a height of 0.60mm. It has two terminations and is moisture resistant, with an MSL rating of 1.



This resistor is RoHS3 compliant and REACH unaffected, making it suitable for various electronic designs where environmental considerations are important.

RC0805FR-07220RL Quick Information

Product Type: Chip Resistor - Surface Mount
Series: RC_L
Canonical Name: Yageo RC0805FR-07220RL Thick Film Chip Resistor, 220 Ohm ±1% 1/8W, 0805
Subcategory: Chip Resistor, Surface Mount

RC0805FR-07220RL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RC0805FR-07220RL Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0805FR-07220RL Features

  • 220 Ohm resistance with ±1% tolerance.
  • 1/8W power rating for general applications.
  • Wide operating temperature range: -55°C to 155°C.
  • 0805 surface mount package dimensions.
  • Thick film construction for reliability.

RC0805FR-07220RL Applications

  • Suitable for general purpose circuits.
  • Ideal for automated SMT assembly.
  • Used in temperature-sensitive designs.
  • Component for compact electronic devices.

RC0805FR-07220RL FAQs

5 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RC0805FR-07220RL resistor?

The resistance value is 220 Ohms.

What is the tolerance of the Yageo RC0805FR-07220RL resistor?

The tolerance is ±1%.

What is the power rating of the RC0805FR-07220RL chip resistor?

The power rating is 0.125W or 1/8W.

What is the operating temperature range for this resistor?

The operating temperature range is -55°C to 155°C.

What is the package size of the RC0805FR-07220RL?

The package size is 0805 (2012 Metric).
