| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,938 pcs
|
4938 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Halogen Free | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

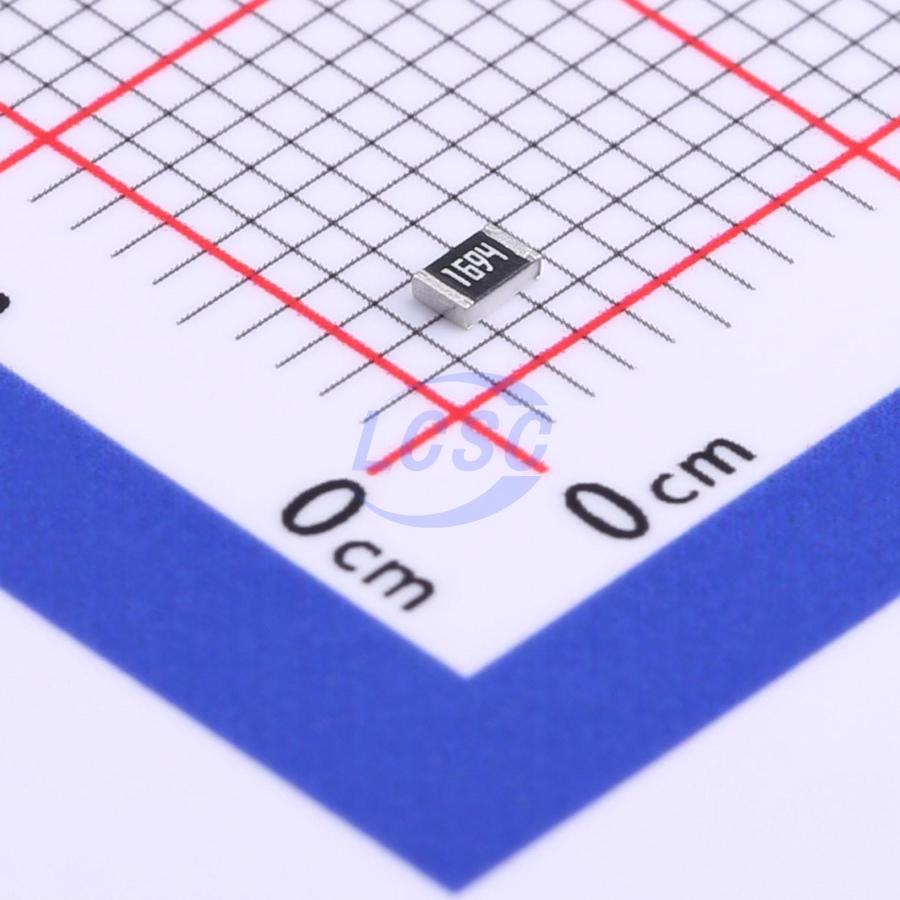

This Yageo RC0805FR-071M69L is a surface mount chip resistor from the RC_L series. It features a resistance value of 1.69 MΩ with a tight tolerance of ±1%. The resistor has a power rating of 0.125W (1/8W) and a temperature coefficient of ±100ppm/°C.
The component is housed in an 0805 (2012 Metric) package, measuring 2.00mm in length and 1.25mm in width, with a height of 0.60mm. It is constructed using a thick film process and has 2 terminations. The operating temperature range is -55°C to 155°C.
This chip resistor is suitable for general-purpose applications and is RoHS compliant and Halogen free. Its moisture-resistant feature and MSL 1 rating make it reliable for various environmental conditions. The surface mount design saves PCB space and simplifies assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 1.69MΩ.
The tolerance is ±1%.
The power rating is 0.125W (1/8W).
The temperature coefficient is ±100ppm/°C.
The 0805 package measures 2.00mm in length, 1.25mm in width, and 0.60mm in height.
Yes, the product is RoHS3 Compliant.
The MSL is 1 Unlimited.
