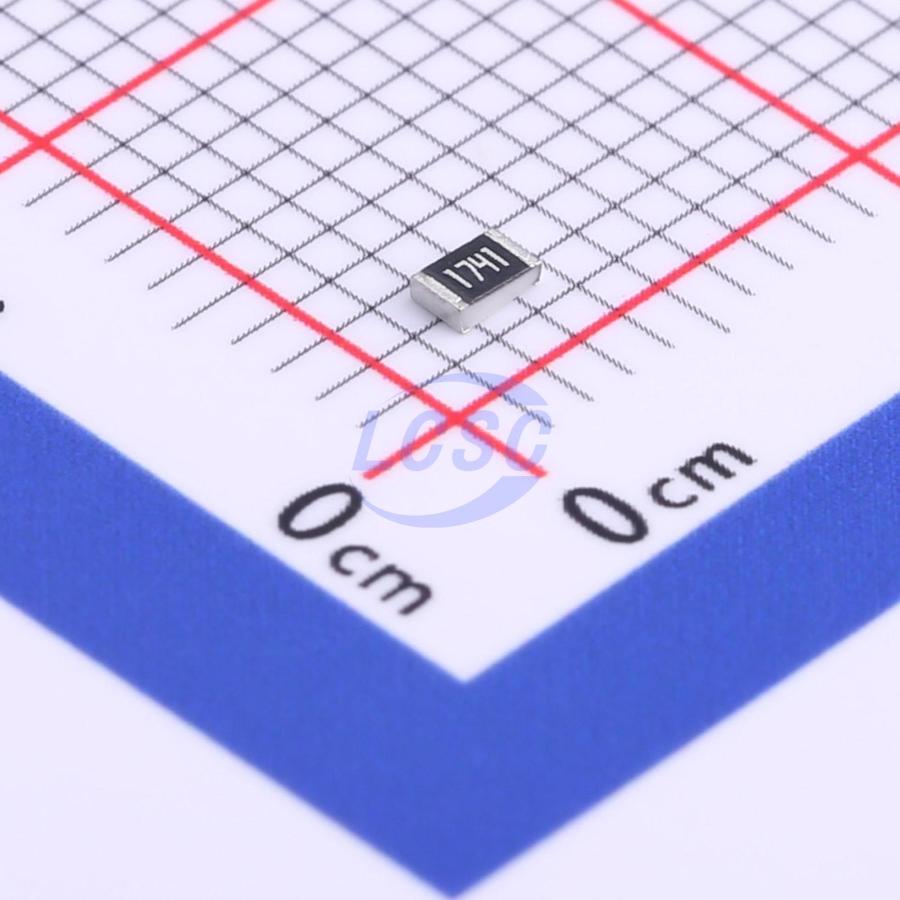

RC0805FR-071K74L The Yageo RC0805FR-071K74L is a surface mount chip resistor with a resistance of 1.74 kΩ and a tolerance of ±1%. It is rated for 1/8W power.
Mfr Part #:

RC0805FR-071K74L

Available from 3 distributors
Mfr Name: Yageo
Yageo
The Yageo RC0805FR-071K74L is a surface mount chip resistor with a resistance of 1.74 kΩ and a tolerance of ±1%. It is rated for 1/8W power.
✓ Total Stock: 15,231 pcs
$ Price Range: $0.02

RC0805FR-071K74L Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
6,625 pcs
On Request
6625 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
6,625 pcs
On Request
6625 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
1,981 pcs
On Request
1981 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RC0805FR-071K74L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Failure Rate
Features
Halogen Free
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RC0805FR-071K74L Description

Short technical summary and product information.

This Yageo RC0805FR-071K74L is a surface mount chip resistor from the RC_L series. It features a resistance value of 1.74 kΩ with a tight tolerance of ±1% and a power rating of 0.125W (1/8W). The operating temperature range is -55°C to 155°C, with a temperature coefficient of ±100ppm/°C.



The component is housed in an 0805 (2012 Metric) package, measuring 2.00mm in length and 1.25mm in width, with a height of 0.60mm. It has 2 terminations and is constructed using thick film technology. This resistor is designed for general-purpose applications and offers moisture resistance.



It is RoHS compliant and Halogen Free, meeting environmental standards. The MSL rating is 1, indicating unlimited usability under standard conditions. This component is suitable for various electronic circuits requiring reliable surface mount resistors.

RC0805FR-071K74L Quick Information

Product Type: Chip Resistor
Series: RC_L
Canonical Name: Yageo RC0805FR-071K74L Chip Resistor
Subcategory: Chip Resistor, Surface Mount

RC0805FR-071K74L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

RC0805FR-071K74L Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0805FR-071K74L Features

  • 1.74 kΩ resistance with ±1% tolerance.
  • Rated for 0.125W (1/8W) power.
  • Wide operating temperature range: -55°C to 155°C.
  • Surface mount 0805 package dimensions.
  • RoHS compliant and Halogen Free.

RC0805FR-071K74L Applications

  • Suitable for general purpose applications.
  • Used in circuits requiring stable resistance.
  • Ideal for automated PCB assembly.
  • Component for various electronic devices.

RC0805FR-071K74L FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RC0805FR-071K74L resistor?

The resistance value is 1.74 kΩ.

What is the tolerance of the Yageo RC0805FR-071K74L chip resistor?

The tolerance is ±1%.

What is the power rating for the RC0805FR-071K74L resistor?

The power rating is 0.125W, or 1/8W.

What is the operating temperature range for this chip resistor?

The operating temperature range is -55°C to 155°C.

What are the dimensions of the 0805 package?

The 0805 package measures 2.00mm in length and 1.25mm in width.

Is the Yageo RC0805FR-071K74L RoHS compliant?

Yes, this component is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The MSL is 1 Unlimited.
