Mfr Part #:

RC0805FR-071K5L

Mfr Name: Yageo

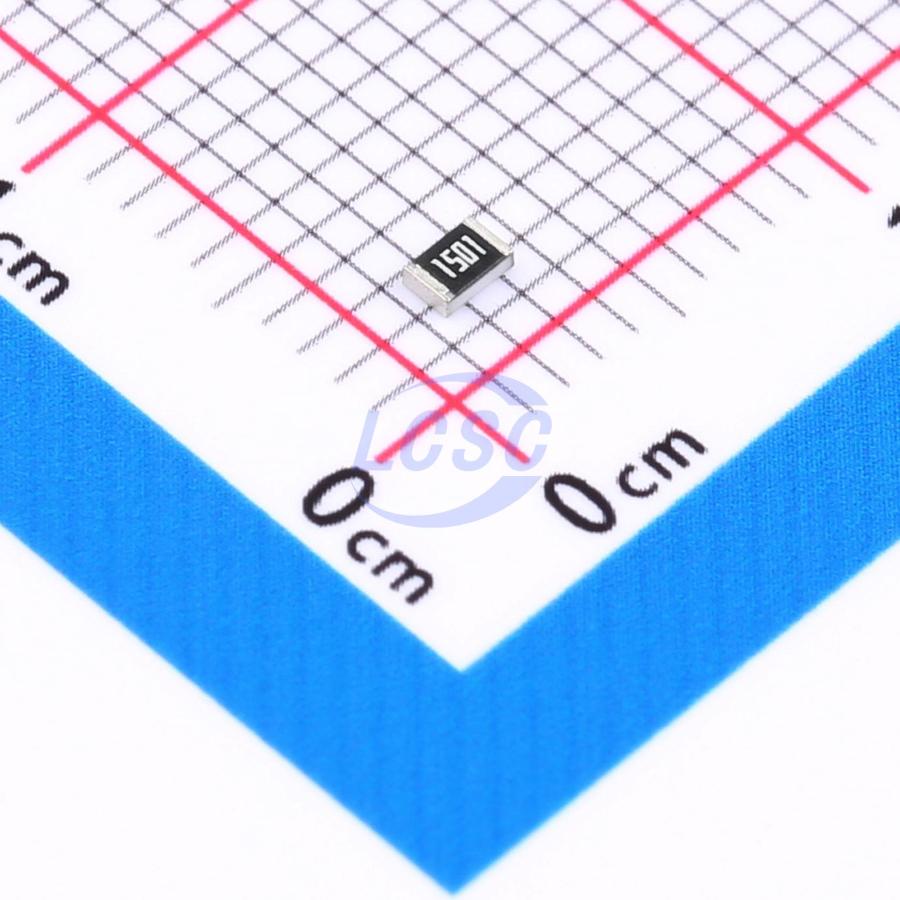

The Yageo RC0805FR-071K5L is a surface mount chip resistor from the RC_L series. It offers a resistance of 1.5 kΩ with a tolerance of ±1% and a power rating of 1/8W.

✓ Total Stock: 45,290 pcs

$ Price Range: $0.02

RC0805FR-071K5L Available from 9 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
PROSOFT ELECTRONICS ✓ Non-Authorised Inventory information	20,000 pcs On Request	20000 pcs	On Request	1	On Request	On Request	25+	On Request	On Request
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	8,550 pcs On Request	8550 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Fe Components ✓ Non-Authorised Inventory information	5,000 pcs On Request	5000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
OTL Components ✓ Non-Authorised Inventory information	5,000 pcs On Request	5000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
ADI/AAR OEM Supply ✓ Non-Authorised Inventory information	4,990 pcs On Request	4990 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
ACK ELEKTRONIK ✓ Non-Authorised Inventory information	1,689 pcs On Request	1689 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Speed Components Ltd ✓ Non-Authorised Inventory information	59 pcs On Request	59 pcs	On Request	1	On Request	On Request	1422	On Request	On Request
Braun Electronic Components ✓ Non-Authorised Inventory information	1 pcs On Request	1 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
RAD ✓ Non-Authorised Inventory information	1 pcs On Request	1 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

RC0805FR-071K5L Description

Short technical summary and product information.

This Yageo RC0805FR-071K5L is a surface mount chip resistor belonging to the RC_L series. It is designed for general-purpose applications and features a resistance value of 1.5 kΩ with a tight tolerance of ±1%. The resistor has a power rating of 125 mW (1/8W) and a temperature coefficient of ±100ppm/°C.

The component is housed in an 0805 (2012 Metric) package, measuring 2.00mm in length and 1.25mm in width, with a height of 0.60mm. It operates within a temperature range of -55°C to +155°C and has 2 terminations.

This chip resistor is RoHS3 compliant and Halogen Free, indicating its suitability for environmentally conscious designs. It is also classified as Moisture Sensitivity Level 1 (MSL 1), meaning it has unlimited shelf life under recommended storage conditions.

RC0805FR-071K5L Quick Information

Product Type: Chip Resistor - Surface Mount

Series: RC_L

Canonical Name: Yageo RC_L Series 1.5 kΩ ±1% 1/8W Thick Film Surface Mount Resistor, 0805

Subcategory: Surface Mount Resistor

RC0805FR-071K5L Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): MSL 1

REACH Status: REACH Unaffected

Lead Free: Lead Free

RC0805FR-071K5L Estimated Pricing

Qty	Low	High
1+	$0.02	$0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0805FR-071K5L Features

1.5 kΩ resistance with ±1% tolerance.
1/8W power rating suitable for general use.
0805 package for surface mount assembly.
Wide operating temperature range of -55°C to +155°C.
RoHS3 compliant and Halogen Free.

RC0805FR-071K5L Applications

Suitable for general purpose applications.
Ideal for automated PCB assembly.
Used in circuits requiring stable resistance.
Component for various electronic designs.

RC0805FR-071K5L FAQs

7 frequently asked questions generated from this part’s specifications.

What is the resistance value of the RC0805FR-071K5L resistor?

The resistance value is 1.5 kΩ.

What is the tolerance of the Yageo RC0805FR-071K5L chip resistor?

The tolerance is ±1%.

What is the power rating for the RC0805FR-071K5L resistor?

The power rating is 125 mW (1/8 W).

What is the operating temperature range for this resistor?

The operating temperature range is -55°C to +155°C.

What package size is the RC0805FR-071K5L resistor?

The resistor is in an 0805 (2012 Metric) package.

Is the Yageo RC0805FR-071K5L RoHS compliant?

Yes, it is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this component?

The MSL is 1 Unlimited.

Category	Chip Resistor - Surface Mount
Manufacturer Name	Yageo
Composition	Thick Film
Features	Moisture Resistant
Halogen Free	Halogen Free
Height	0.60mm (0.024")
Length	2.00mm (0.079")
Number of Terminations	2
Operating Temperature	-55°C ~ 155°C
Power (Watts)	0.125W, 1/8W
Power Rating	125 mW (1/8 W)
Resistance	1.5 kΩ
Supplier Device Package	0805
Tape & Reel	Yes
Temperature Coefficient	±100ppm/°C
Tolerance	±1%
Voltage Rating	150 V
Width	1.25mm (0.049")
