| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
89 pcs
$0.02
|
89 pcs |
$0.02
|
1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Halogen Free | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

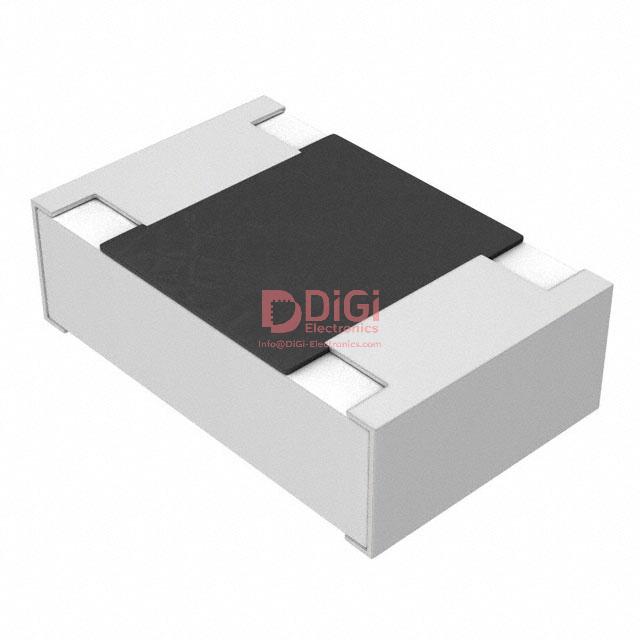

The Yageo RC0805FR-07154KL is a surface mount chip resistor designed for general-purpose applications. It features a resistance value of 154 kOhms with a tight tolerance of ±1%, ensuring precise circuit performance.
With a power rating of 0.125W (1/8W), this resistor is suitable for various electronic designs. The component operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±100ppm/°C.
The resistor is housed in an 0805 (2012 Metric) package, measuring 2.00mm in length and 1.25mm in width, with a height of 0.60mm. It has two terminations and is constructed using thick film technology. The component is also noted for its moisture resistance and automotive AEC-Q200 compliance.
This part is RoHS3 compliant and falls under MSL 1 classification, indicating unlimited usability under standard conditions. It is designed for surface mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 154 kOhms.
The tolerance is ±1%.
The power rating is 0.125W, or 1/8W.
The operating temperature range is -55°C to 155°C.
The dimensions are 2.00mm in length, 1.25mm in width, and 0.60mm in height.
Yes, this component is RoHS3 compliant.
The MSL is 1 Unlimited.
