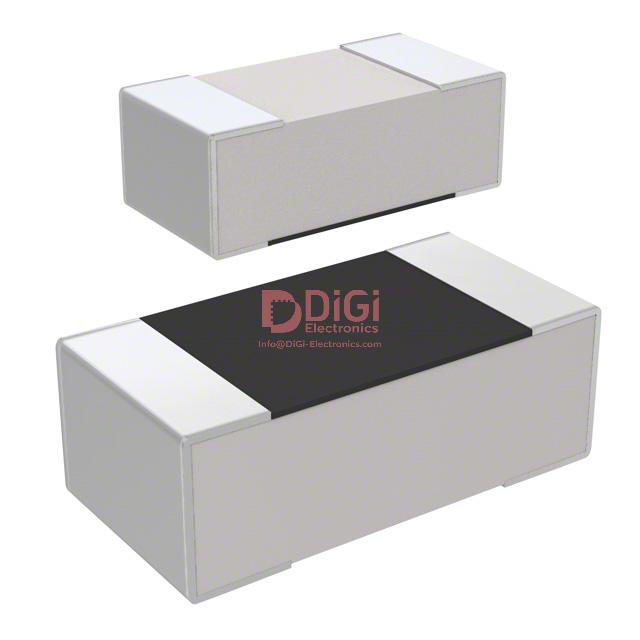

RC0603JR-075R6L The Yageo RC0603JR-075R6L is a 5.6 Ohm, 5% tolerance chip resistor. It is designed for surface mount applications in a 0603 package.
Mfr Part #:

RC0603JR-075R6L

Available from 2 distributors
Mfr Name: Yageo
Yageo
The Yageo RC0603JR-075R6L is a 5.6 Ohm, 5% tolerance chip resistor. It is designed for surface mount applications in a 0603 package.
✓ Total Stock: 18,062 pcs
$ Price Range: $0.01

RC0603JR-075R6L Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
14,027 pcs
On Request
14027 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
4,035 pcs
$0.01 ℹ
Qty Price
0+ 0.01
4035 pcs $0.01
QtyPrice
0+ 0.01
1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RC0603JR-075R6L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Halogen Free
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Power Rating
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RC0603JR-075R6L Description

Short technical summary and product information.

This Yageo RC0603JR-075R6L is a surface mount chip resistor with a resistance value of 5.6 Ohms and a tolerance of ±5%. It has a power rating of 0.1W (1/10W) and operates within a temperature range of -55°C to 155°C.



The component is housed in a 0603 (1608 Metric) package, measuring 1.60mm in length and 0.80mm in width. Its composition is thick film, and it features moisture resistance.



This resistor is suitable for general-purpose applications and is RoHS compliant and Halogen free, aligning with environmental regulations. The standard package is tape and reel, with an MSL rating of 1 Unlimited.

RC0603JR-075R6L Quick Information

Product Type: Chip Resistor
Series: RC_L
Canonical Name: Yageo RC0603JR-075R6L Chip Resistor
Subcategory: Surface Mount

RC0603JR-075R6L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RC0603JR-075R6L Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0603JR-075R6L Features

  • 5.6 Ohm resistance with ±5% tolerance.
  • 0.1W power rating in a 0603 package.
  • Thick film composition for reliability.
  • Moisture resistant for harsh environments.
  • RoHS compliant and Halogen free.

RC0603JR-075R6L Applications

  • Suitable for surface mount resistor applications.
  • Used in low-power electronic circuits.
  • Ideal for moisture-resistant circuit designs.
  • Applicable in space-constrained device assemblies.
  • Suitable for general purpose resistance needs.

RC0603JR-075R6L FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RC0603JR-075R6L?

The resistance value is 5.6 Ohms.

What is the tolerance of the RC0603JR-075R6L resistor?

The tolerance is ±5%.

What is the power rating for the RC0603JR-075R6L?

The power rating is 0.1W, or 1/10W.

What is the operating temperature range for this chip resistor?

The operating temperature range is -55°C to 155°C.

What package size is the RC0603JR-075R6L resistor?

It is a 0603 (1608 Metric) package.

Is the RC0603JR-075R6L RoHS compliant?

Yes, it is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this component?

The MSL is 1 Unlimited.
