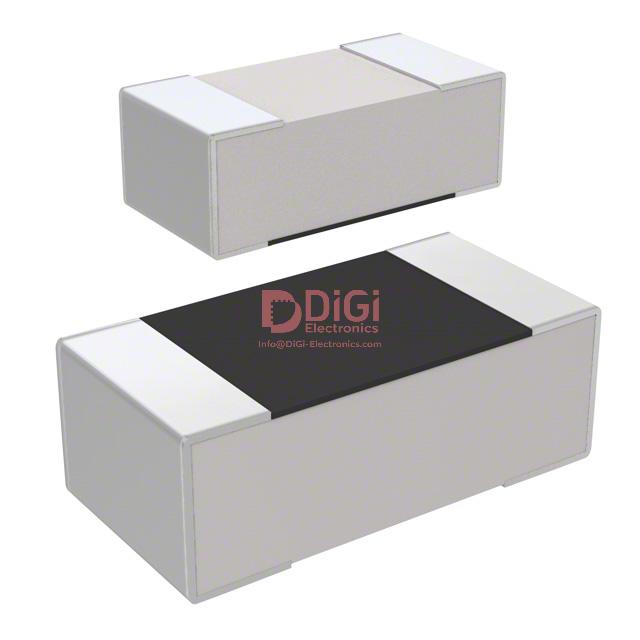

RC0603JR-07560RL The Yageo RC0603JR-07560RL is a surface mount chip resistor with a resistance of 560 Ohms and a tolerance of ±5%. It has a power rating of 0.1W.
Mfr Part #:

RC0603JR-07560RL

Available from 7 distributors
Mfr Name: Yageo
Yageo
The Yageo RC0603JR-07560RL is a surface mount chip resistor with a resistance of 560 Ohms and a tolerance of ±5%. It has a power rating of 0.1W.
✓ Total Stock: 14,975 pcs
$ Price Range: $0.02

RC0603JR-07560RL Available from 7 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RC0603JR-07560RL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Composition
Features
Height
Industrial Grade
Length
Medical Grade
Military Grade
Mounting Type
Number of Terminations
Operating Temperature
Power (Watts)
Power Rating
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RC0603JR-07560RL Description

Short technical summary and product information.

This Yageo RC0603JR-07560RL is a surface mount chip resistor designed for general-purpose applications. It features a resistance value of 560 Ohms with a tolerance of ±5%, ensuring reliable performance in various circuits.



The resistor has a power rating of 0.1W (1/10W) and operates within a temperature range of -55°C to 155°C. Its compact 0603 (1608 Metric) package size, measuring 1.60mm x 0.80mm, makes it suitable for space-constrained designs. The thick film composition and moisture-resistant feature contribute to its durability and high component reliability.



This component is compliant with RoHS3 standards and has an MSL rating of 1, indicating unlimited usability under standard conditions. Its surface mount termination style simplifies integration into printed circuit boards, making it a versatile choice for electronic designs requiring precise resistance values in a small form factor.

RC0603JR-07560RL Quick Information

Product Type: Chip Resistor
Series: RC_L
Canonical Name: Yageo RC0603JR-07560RL Chip Resistor - Surface Mount 560 Ohm ±5% 0.1W
Subcategory: Surface Mount

RC0603JR-07560RL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RC0603JR-07560RL Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0603JR-07560RL Features

  • 560 Ohms resistance with ±5% tolerance.
  • 0.1W power rating suitable for general use.
  • Compact 0603 (1608 Metric) surface mount package.
  • Operates across a wide temperature range.
  • RoHS3 compliant and MSL 1 rated.

RC0603JR-07560RL Applications

  • Suitable for general purpose applications.
  • Ideal for space-constrained designs.
  • Used in circuits requiring precise resistance.
  • Surface mount integration on PCBs.

RC0603JR-07560RL FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RC0603JR-07560RL?

The resistance value is 560 Ohms.

What is the tolerance of the Yageo RC0603JR-07560RL resistor?

The tolerance is ±5%.

What is the power rating for this chip resistor?

The power rating is 0.1W, or 1/10W.

What is the operating temperature range for the RC0603JR-07560RL?

It operates from -55°C to 155°C.

What are the dimensions of the 0603 package?

The package dimensions are 1.60mm in length and 0.80mm in width.

Is this resistor RoHS compliant?

Yes, it is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this component?

The MSL is 1.
