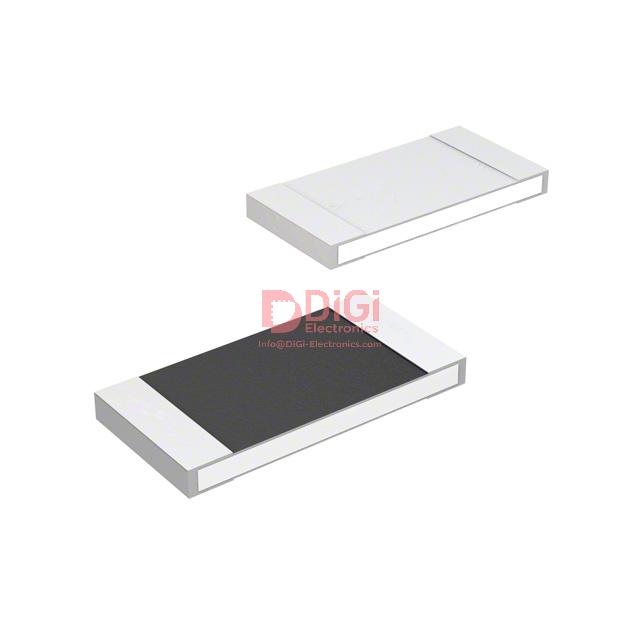

RC0603JR-07560KL The Yageo RC0603JR-07560KL is a 0603 surface mount chip resistor with a resistance of 560 kΩ and a tolerance of ±5%. It has a power rating of 0.1W.
Mfr Part #:

RC0603JR-07560KL

Available from 3 distributors
Mfr Name: Yageo
Yageo
The Yageo RC0603JR-07560KL is a 0603 surface mount chip resistor with a resistance of 560 kΩ and a tolerance of ±5%. It has a power rating of 0.1W.
✓ Total Stock: 9,664 pcs
$ Price Range: $0.02

RC0603JR-07560KL Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
4,830 pcs
On Request
4830 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
4,830 pcs
On Request
4830 pcs On Request 1 On Request On Request On Request On Request On Request
Trace Tec ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RC0603JR-07560KL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Height
Length
Mounting Type
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RC0603JR-07560KL Description

Short technical summary and product information.

The Yageo RC0603JR-07560KL is a surface mount chip resistor designed for general-purpose applications. It features a resistance value of 560 kΩ with a tolerance of ±5% and a power rating of 0.1W (1/10W).



This component is housed in a compact 0603 (1608 Metric) package, measuring 1.60mm in length and 0.80mm in width, with a height of 0.55mm. It operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±100ppm/°C.



The resistor is constructed using a thick film composition and has 2 terminations. It is specified as Moisture Resistant and is RoHS3 Compliant, with an MSL rating of 1 Unlimited and REACH Unaffected status.

RC0603JR-07560KL Quick Information

Product Type: Chip Resistor
Series: RC_L
Canonical Name: Yageo RC0603JR-07560KL Chip Resistor
Subcategory: Surface Mount

RC0603JR-07560KL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RC0603JR-07560KL Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0603JR-07560KL Features

  • 560 kΩ resistance with ±5% tolerance.
  • 0.1W power rating in a 0603 package.
  • Operating temperature from -55°C to 155°C.
  • Thick film composition for reliability.
  • Surface mount design for PCB integration.

RC0603JR-07560KL Applications

  • Suitable for general purpose applications.
  • Ideal for space-constrained PCBs.
  • Used in various electronic circuits.
  • Surface mount assembly compatible.

RC0603JR-07560KL FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RC0603JR-07560KL?

The resistance value is 560 kΩ.

What is the tolerance of the RC0603JR-07560KL chip resistor?

The tolerance is ±5%.

What is the power rating for the RC0603JR-07560KL?

The power rating is 0.1W, or 1/10W.

What is the operating temperature range for this chip resistor?

The operating temperature range is -55°C to 155°C.

What package size is the RC0603JR-07560KL?

It is in the 0603 (1608 Metric) package size.

What is the temperature coefficient of the RC0603JR-07560KL?

The temperature coefficient is ±100ppm/°C.
