| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,583 pcs
|
3583 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Halogen Free | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

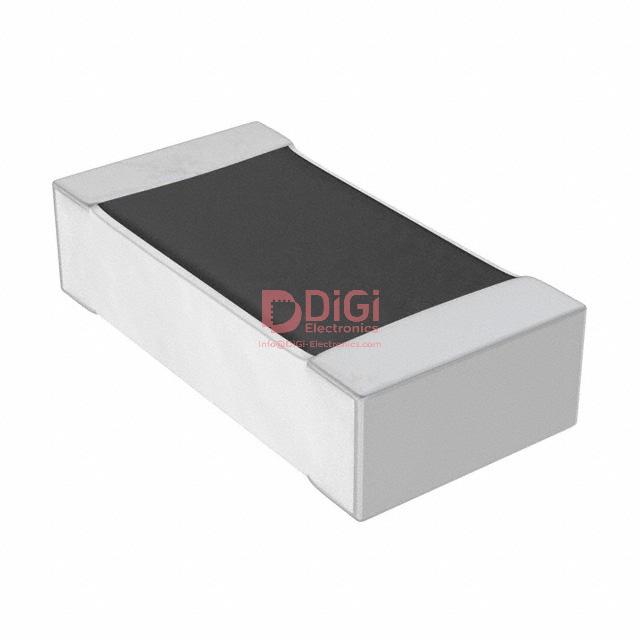

The Yageo RC0603JR-072R7L is a surface mount chip resistor from the RC_L series. It offers a resistance value of 2.7 Ohms with a tight tolerance of ±5%. The resistor is rated for 0.1W of power and has a temperature coefficient of ±200ppm/°C.
Designed for general-purpose applications, this chip resistor features a thick film composition and operates within a temperature range of -55°C to 155°C. Its compact 0603 (1608 Metric) package makes it suitable for space-constrained designs.
The component is built with moisture-resistant features and meets RoHS3 compliance standards. Its dimensions are 1.60mm in length and 0.80mm in width, with a height of 0.55mm. The 0603 package is ideal for automated assembly processes on printed circuit boards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 2.7 Ohms.
The tolerance is ±5%.
The power rating is 0.1W, or 1/10W.
The operating temperature range is -55°C to 155°C.
The dimensions are 1.60mm in length and 0.80mm in width.
Yes, it is RoHS3 Compliant.
The MSL is 1 Unlimited.
