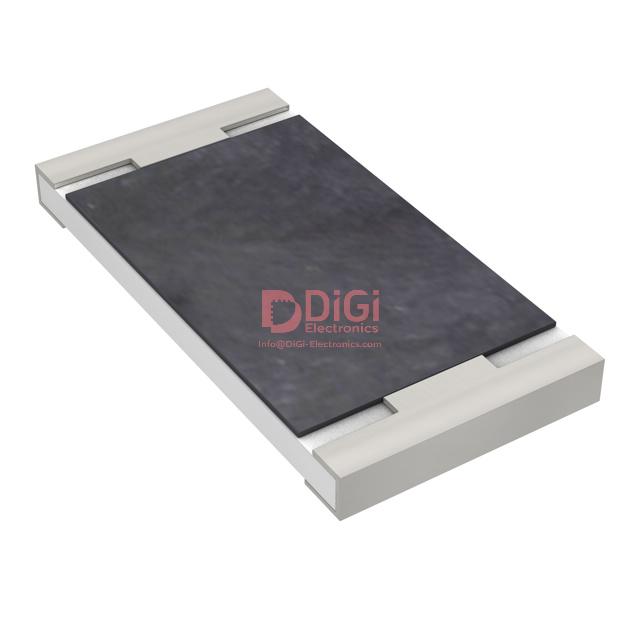

RC0603JR-071R2L This Yageo RC0603JR-071R2L is a surface mount chip resistor with a resistance of 1.2 Ohms and a tolerance of ±5%. It has a power rating of 0.1W.
Mfr Part #:

RC0603JR-071R2L

Available from 1 distributors
Mfr Name: Yageo
Yageo
This Yageo RC0603JR-071R2L is a surface mount chip resistor with a resistance of 1.2 Ohms and a tolerance of ±5%. It has a power rating of 0.1W.
✓ Total Stock: 8,137 pcs
$ Price Range: $0.02

RC0603JR-071R2L Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
8,137 pcs
On Request
8137 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RC0603JR-071R2L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Height
Length
Mounting Type
Number of Terminations
Operating Temperature
Power (Watts)
Power Rating
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RC0603JR-071R2L Description

Short technical summary and product information.

The Yageo RC0603JR-071R2L is a surface mount chip resistor designed for general purpose applications. It features a resistance value of 1.2 Ohms with a tight tolerance of ±5%, ensuring accurate circuit performance.



With a power rating of 0.1W (1/10W), this resistor is suitable for various electronic designs. The component operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±200ppm/°C.



The resistor is housed in a compact 0603 (1608 Metric) package, measuring 1.60mm in length and 0.80mm in width, with a height of 0.55mm. It features two terminations and is constructed using a thick film composition. The 'Moisture Resistant' feature enhances its reliability in various environmental conditions.



This component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.

RC0603JR-071R2L Quick Information

Product Type: Chip Resistor
Series: RC_L
Canonical Name: Yageo RC0603JR-071R2L Chip Resistor, 1.2 Ohm, ±5% Tolerance, 0.1W Power Rating, 0603 Package
Subcategory: Surface Mount

RC0603JR-071R2L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RC0603JR-071R2L Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0603JR-071R2L Features

  • 1.2 Ohm resistance with ±5% tolerance.
  • 0.1W power rating suitable for general use.
  • Compact 0603 (1608 Metric) surface mount package.
  • Operates from -55°C to 155°C.
  • Moisture resistant for enhanced reliability.

RC0603JR-071R2L Applications

  • Ideal for general purpose circuits.
  • Suitable for compact electronic designs.
  • Used in applications requiring stable resistance.
  • Component for signal conditioning circuits.

RC0603JR-071R2L FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RC0603JR-071R2L?

The resistance value is 1.2 ohms.

What is the tolerance of this resistor?

The tolerance is ±5%.

What is the power rating of the RC0603JR-071R2L?

The power rating is 0.1W (1/10W).

What is the operating temperature range?

It operates from -55°C to 155°C.

What package size does this resistor use?

It uses a 0603 (1608 metric) package.

Is this resistor moisture resistant?

Yes, it is moisture resistant.
