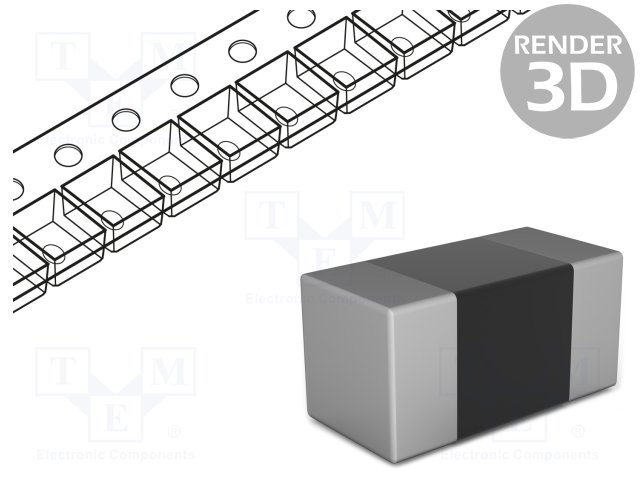

RC0603JR-071KL The Yageo RC0603JR-071KL is a surface-mount chip resistor with a resistance of 1 kΩ and a tolerance of ±5%. It has a power rating of 0.1W.
Mfr Part #:

RC0603JR-071KL

Available from 5 distributors
Mfr Name: Yageo
Yageo
The Yageo RC0603JR-071KL is a surface-mount chip resistor with a resistance of 1 kΩ and a tolerance of ±5%. It has a power rating of 0.1W.
✓ Total Stock: 15,390 pcs
$ Price Range: $0.02

RC0603JR-071KL Available from 5 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RC0603JR-071KL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Halogen Free
Height
Length
Mounting Type
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RC0603JR-071KL Description

Short technical summary and product information.

This Yageo RC0603JR-071KL is a surface-mount thick film chip resistor designed for general-purpose applications. It features a resistance value of 1 kΩ with a tolerance of ±5% and a power rating of 0.1W (1/10W).



The resistor operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±100ppm/°C. The component is housed in a 0603 (1608 Metric) case size, measuring 1.60mm in length and 0.80mm in width, with a height of 0.55mm.



It is compliant with RoHS3 and Halogen Free standards, and its MSL is rated at 1 Unlimited. The component is suitable for various general-purpose applications where precise resistance values are required in a compact form factor.

RC0603JR-071KL Quick Information

Product Type: SMD Chip Resistor
Series: RC_L
Canonical Name: Yageo RC0603JR-071KL SMD Chip Resistor, 1 kOhm, 5%, 100 mW, 0603
Subcategory: Surface Mount

RC0603JR-071KL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

RC0603JR-071KL Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0603JR-071KL Features

  • 1 kΩ resistance with ±5% tolerance.
  • 0.1W power rating in a 0603 package.
  • Wide operating temperature range of -55°C to 155°C.
  • Thick film composition for general purpose use.
  • RoHS3 and Halogen Free compliant.

RC0603JR-071KL Applications

  • Suitable for general purpose applications.
  • Ideal for compact PCB designs.
  • Used in circuits requiring stable resistance.
  • Component for signal conditioning.

RC0603JR-071KL FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RC0603JR-071KL resistor?

The resistance value is 1 kΩ.

What is the tolerance of the Yageo RC0603JR-071KL chip resistor?

The tolerance is ±5%.

What is the power rating for the RC0603JR-071KL resistor?

The power rating is 0.1W (1/10W).

What is the operating temperature range for this chip resistor?

The operating temperature range is -55°C to 155°C.

What is the package size of the RC0603JR-071KL?

The package size is 0603 (1608 Metric).

Is the Yageo RC0603JR-071KL RoHS compliant?

Yes, it is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this component?

The MSL is 1 Unlimited.
