| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,131 pcs
|
8131 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8,131 pcs
|
8131 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

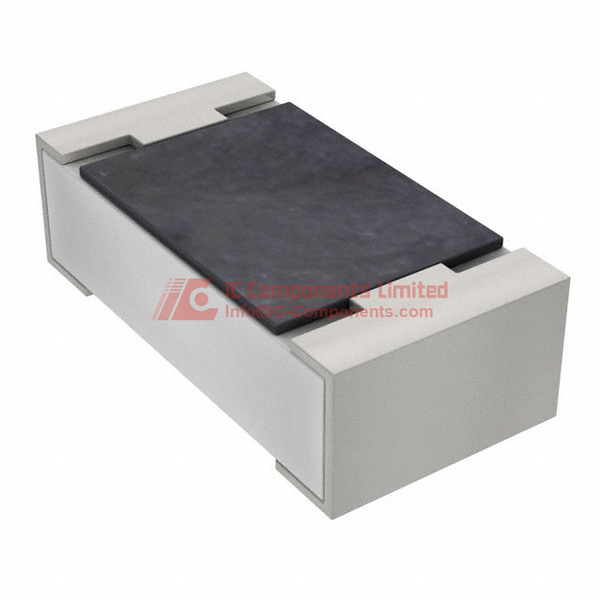

The Yageo RC0603JR-07160RL is a surface mount chip resistor from the RC_L series. It features a resistance value of 160 Ohms with a tolerance of ±5% and a power rating of 0.1W (1/10W). The component operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±100ppm/°C.
This resistor is housed in a 0603 (1608 Metric) package, measuring 1.60mm in length and 0.80mm in width, with a height of 0.55mm. It is constructed using a thick film composition and is designed for general-purpose applications. The component is moisture resistant and has 2 terminations.
The RC0603JR-07160RL is supplied in tape and reel packaging, with a standard package quantity of 5,000 units. It meets RoHS3 compliance and is considered lead-free. The Moisture Sensitivity Level (MSL) is 1 (Unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 160 Ohms.
The tolerance is ±5%.
The power rating is 0.1W, or 1/10W.
The operating temperature range is -55°C to 155°C.
The package size is 0603 (1608 Metric).
The standard package quantity is 5,000 units.
