| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
26,628 pcs
|
26628 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,994 pcs
|
2994 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

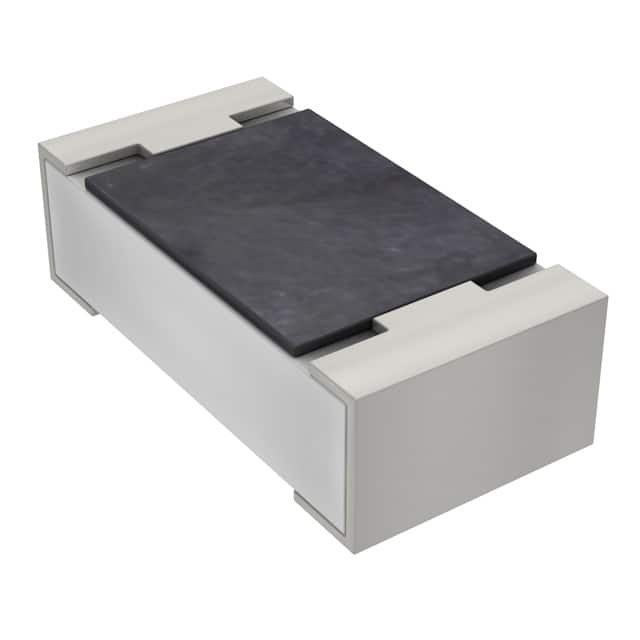

This Yageo RC0603JR-0715RL is a surface mount chip resistor from the RC_L series. It features a resistance value of 15 Ohms with a tolerance of ±5% and a power rating of 0.1W (1/10W). The resistor is constructed using thick film technology and is designed for general-purpose applications.
The component is housed in a compact 0603 (1608 Metric) package, measuring 1.60mm in length and 0.80mm in width, with a height of 0.55mm. It operates reliably across a wide temperature range from -55°C to 155°C and includes features such as moisture resistance. The resistor has 2 terminations.
This chip resistor is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1. Its temperature coefficient is ±100ppm/°C. The thick film composition ensures high component and equipment reliability, making it suitable for various general-purpose applications where space saving and environmental considerations are important.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 15 Ohms.
The tolerance is ±5%.
The power rating is 0.1W, or 1/10W.
The operating temperature range is -55°C to 155°C.
It comes in a 0603 (1608 Metric) package.
The temperature coefficient is ±100ppm/°C.
