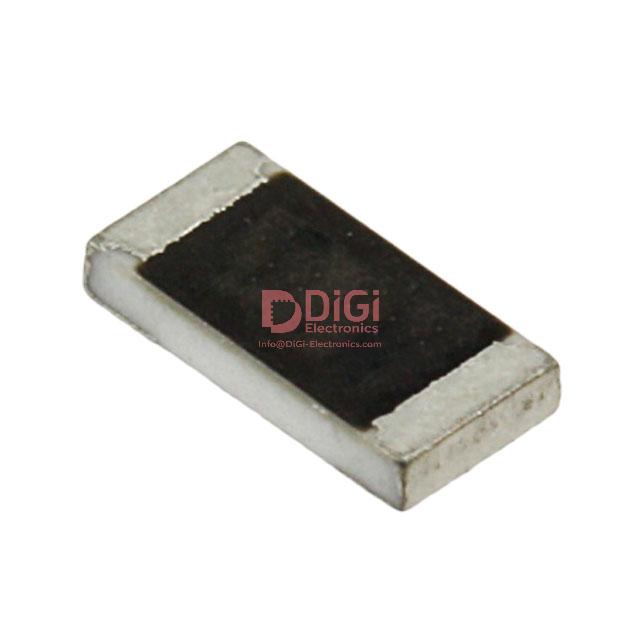

RC0603FR-0790K9L The Yageo RC0603FR-0790K9L is a surface mount chip resistor with a resistance of 90.9 kOhms and a tolerance of ±1%. It features a power rating of 0.1W.
Mfr Part #:

RC0603FR-0790K9L

Available from 5 distributors
Mfr Name: Yageo
Yageo
The Yageo RC0603FR-0790K9L is a surface mount chip resistor with a resistance of 90.9 kOhms and a tolerance of ±1%. It features a power rating of 0.1W.
✓ Total Stock: 15,808 pcs
$ Price Range: $0.02

RC0603FR-0790K9L Available from 5 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RC0603FR-0790K9L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Halogen Free
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RC0603FR-0790K9L Description

Short technical summary and product information.

This Yageo RC0603FR-0790K9L is a surface mount chip resistor designed for general-purpose applications. It offers a resistance value of 90.9 kOhms with a tight tolerance of ±1%. The resistor has a power rating of 0.1W and a temperature coefficient of ±100ppm/°C, ensuring stable performance across a wide operating temperature range of -55°C to 155°C.



The component is housed in a compact 0603 (1608 Metric) package, measuring 1.60mm in length and 0.80mm in width, with a height of 0.55mm. It features thick film composition and is moisture resistant. The RC0603FR-0790K9L is RoHS3 compliant and meets halogen-free requirements, making it suitable for environmentally conscious designs. Its MSL rating is 1 Unlimited.



This chip resistor is ideal for various electronic circuits where precise resistance values and reliable performance are critical. Its surface mount design facilitates automated assembly processes.

RC0603FR-0790K9L Quick Information

Product Type: Chip Resistor
Series: RC_L
Canonical Name: Yageo RC0603FR-0790K9L Chip Resistor
Subcategory: Surface Mount

RC0603FR-0790K9L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RC0603FR-0790K9L Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0603FR-0790K9L Features

  • 90.9 kOhms resistance with ±1% tolerance.
  • 0.1W power rating for general applications.
  • Wide operating temperature range of -55°C to 155°C.
  • Compact 0603 (1608 Metric) surface mount package.
  • RoHS3 compliant and halogen-free.

RC0603FR-0790K9L Applications

  • Suitable for general purpose circuits.
  • Used in compact electronic devices.
  • Ideal for automated PCB assembly.
  • Reliable performance in varying temperatures.

RC0603FR-0790K9L FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RC0603FR-0790K9L chip resistor?

The resistance value is 90.9 kOhms.

What is the tolerance of the Yageo RC0603FR-0790K9L resistor?

The tolerance is ±1%.

What is the power rating of this chip resistor?

The power rating is 0.1W, or 1/10W.

What is the operating temperature range for the RC0603FR-0790K9L?

The operating temperature range is -55°C to 155°C.

What is the package size of the Yageo RC0603FR-0790K9L?

The package size is 0603 (1608 Metric).

Is the RC0603FR-0790K9L RoHS compliant?

Yes, it is RoHS3 compliant.

What is the Moisture Sensitivity Level (MSL) for this component?

The MSL is 1 Unlimited.
