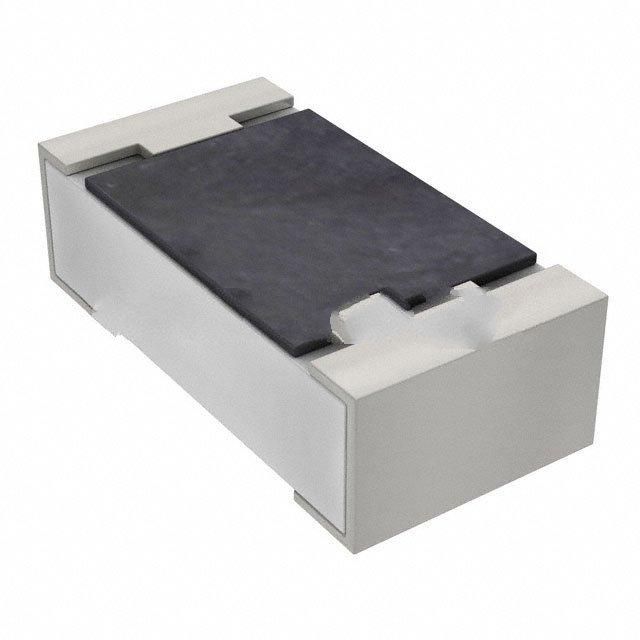

RC0603FR-07750KL The Yageo RC0603FR-07750KL is a thick film chip resistor with a resistance of 750 kΩ and a tolerance of ±1%. It is designed for surface mount applications in a 0603 package.
Mfr Part #:

RC0603FR-07750KL

Available from 4 distributors
Mfr Name: Yageo
Yageo
The Yageo RC0603FR-07750KL is a thick film chip resistor with a resistance of 750 kΩ and a tolerance of ±1%. It is designed for surface mount applications in a 0603 package.
✓ Total Stock: 23,243 pcs
$ Price Range: $0.02

RC0603FR-07750KL Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RC0603FR-07750KL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Power Rating
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RC0603FR-07750KL Description

Short technical summary and product information.

This Yageo RC0603FR-07750KL is a surface mount chip resistor from the RC_L series. It features a resistance value of 750 kΩ with a tight tolerance of ±1% and a power rating of 0.1W (1/10W). The operating temperature range is -55°C to 155°C, with a temperature coefficient of ±100ppm/°C.



The resistor is constructed using a thick film composition and comes in a standard 0603 (1608 Metric) package size, measuring 1.60mm in length, 0.80mm in width, and 0.55mm in height. It has two terminations and is moisture resistant.



This component is suitable for general-purpose applications where precise resistance values and stable performance are required. Its surface mount design allows for automated assembly processes, saving PCB space and improving manufacturing efficiency.

RC0603FR-07750KL Quick Information

Product Type: Chip Resistor
Series: RC_L
Canonical Name: Yageo RC0603FR-07750KL Thick Film Chip Resistor 750 kΩ ±1% 0.1W
Subcategory: Surface Mount

RC0603FR-07750KL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RC0603FR-07750KL Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0603FR-07750KL Features

  • Thick film chip resistor for general purpose use.
  • Resistance value of 750 kΩ with ±1% tolerance.
  • Power rating of 0.1W (1/10W).
  • Wide operating temperature range of -55°C to 155°C.
  • Compact 0603 (1608 Metric) surface mount package.

RC0603FR-07750KL Applications

  • Suitable for precision voltage divider circuits.
  • Used in general-purpose electronic equipment.
  • Ideal for signal attenuation applications.
  • Applicable in temperature-sensitive resistor networks.
  • Suitable for moisture-resistant electronic assemblies.

RC0603FR-07750KL FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the Yageo RC0603FR-07750KL?

The resistance value is 750 kΩ.

What is the tolerance of the RC0603FR-07750KL resistor?

The tolerance is ±1%.

What is the power rating for the Yageo RC0603FR-07750KL?

The power rating is 0.1W (1/10W).

What is the temperature coefficient of this chip resistor?

The temperature coefficient is ±100ppm/°C.

What is the operating temperature range for the RC0603FR-07750KL?

The operating temperature range is -55°C to 155°C.

What package size is the Yageo RC0603FR-07750KL resistor in?

It is in a 0603 (1608 Metric) package.

Is the Yageo RC0603FR-07750KL RoHS compliant?

Yes, it is RoHS3 Compliant.
