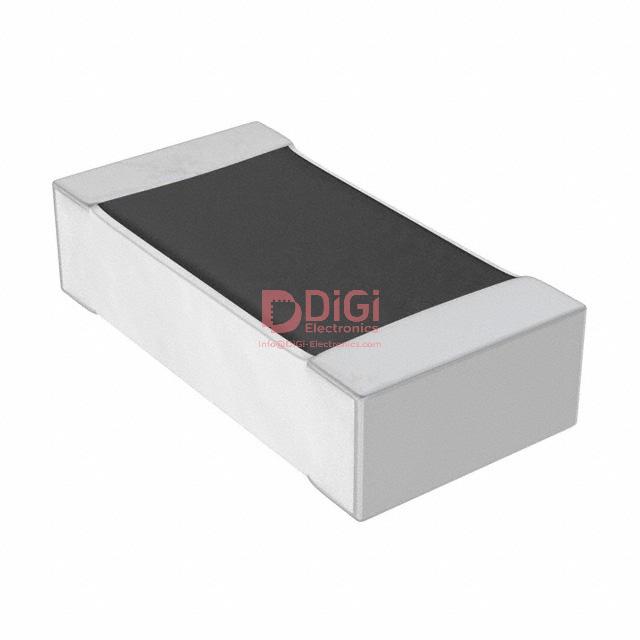

RC0603FR-07590RL The Yageo RC0603FR-07590RL is a surface mount chip resistor with 590 Ohms resistance and a ±1% tolerance. It has a power rating of 0.1W.
Mfr Part #:

RC0603FR-07590RL

Available from 6 distributors
Mfr Name: Yageo
Yageo
The Yageo RC0603FR-07590RL is a surface mount chip resistor with 590 Ohms resistance and a ±1% tolerance. It has a power rating of 0.1W.
✓ Total Stock: 17,957 pcs
$ Price Range: $0.01

RC0603FR-07590RL Available from 6 distributors

✓ Authorised
✓ Non-Authorised

RC0603FR-07590RL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Conflict Minerals
SVHC Present

RC0603FR-07590RL Description

Short technical summary and product information.

This Yageo RC0603FR-07590RL is a surface mount chip resistor designed for various electronic applications. It features a resistance value of 590 Ohms with a tight tolerance of ±1%, ensuring precise circuit performance.



The resistor has a power rating of 0.1W (1/10W) and a thick film composition. It operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±100ppm/°C.



The component comes in a compact 0603 (1608 Metric) package, suitable for automated assembly processes. It is supplied on tape and reel for efficient handling and integration into manufacturing lines.

RC0603FR-07590RL Quick Information

Product Type: Chip Resistor - Surface Mount
Series: RC
Canonical Name: Yageo RC0603FR-07590RL Chip Resistor - Surface Mount
Subcategory: Surface Mount

RC0603FR-07590RL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RC0603FR-07590RL Estimated Pricing

Qty Low High
1+ $0.01 $0.01

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0603FR-07590RL Features

  • 590 Ohms resistance with ±1% tolerance.
  • 0.1W power rating for electronic circuits.
  • Thick film composition for reliability.
  • Compact 0603 (1608 Metric) package.
  • Wide operating temperature range.

RC0603FR-07590RL Applications

  • Used in general electronic circuits.
  • Suitable for surface mount designs.
  • Ideal for precise resistance needs.
  • Automated assembly compatible.

RC0603FR-07590RL FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RC0603FR-07590RL?

The resistance value is 590 Ohms.

What is the tolerance of the RC0603FR-07590RL resistor?

The tolerance is ±1%.

What is the power rating of the RC0603FR-07590RL?

The power rating is 0.1W, or 1/10W.

What is the operating temperature range for this resistor?

The operating temperature range is -55°C to 155°C.

What type of composition does the RC0603FR-07590RL use?

It uses a thick film composition.

What are the dimensions of the RC0603FR-07590RL?

The dimensions are 0.061" L x 0.031" W (1.55mm x 0.80).

What package size is the RC0603FR-07590RL in?

It is in a 0603 (1608 Metric) package.
