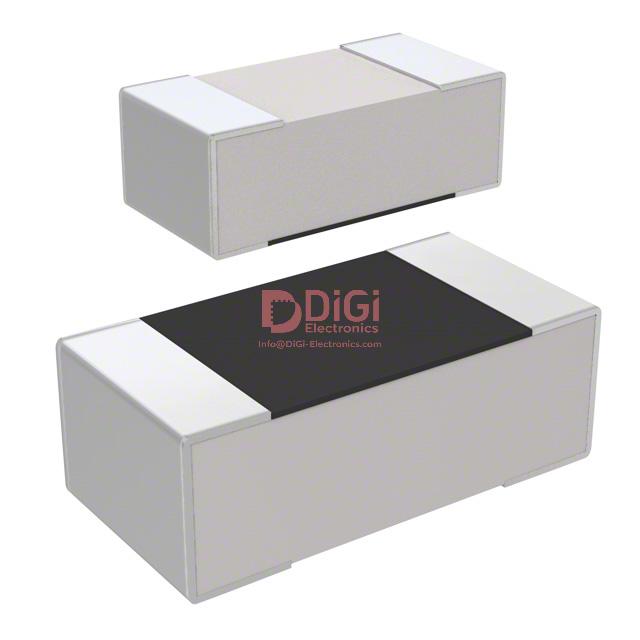

RC0603FR-07562RL The Yageo RC0603FR-07562RL is a surface mount chip resistor with a resistance of 562 Ohms and a tolerance of ±1%. It has a power rating of 0.1W.
Mfr Part #:

RC0603FR-07562RL

Available from 2 distributors
Mfr Name: Yageo
Yageo
The Yageo RC0603FR-07562RL is a surface mount chip resistor with a resistance of 562 Ohms and a tolerance of ±1%. It has a power rating of 0.1W.
✓ Total Stock: 16,977 pcs
$ Price Range: $0.02

RC0603FR-07562RL Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
8,490 pcs
On Request
8490 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
8,487 pcs
On Request
8487 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RC0603FR-07562RL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Halogen Free
Height
Length
Mounting Type
Number of Terminations
Operating Temperature
Power (Watts)
Power Rating
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RC0603FR-07562RL Description

Short technical summary and product information.

This Yageo RC0603FR-07562RL is a surface mount chip resistor designed for general-purpose applications. It features a resistance value of 562 Ohms with a tight tolerance of ±1%, ensuring accurate circuit performance.



The resistor is rated for 0.1W (1/10W) of power and operates within a temperature range of -55°C to 155°C. Its thick film composition contributes to its reliability.



Packaged in an industry-standard 0603 (1608 Metric) case, this component is suitable for automated assembly processes. Its dimensions are 1.60mm in length, 0.80mm in width, and 0.55mm in height. The "Moisture Resistant" feature enhances its durability in various environmental conditions.



This component is RoHS3 compliant and meets REACH requirements, making it suitable for a wide range of electronic designs.

RC0603FR-07562RL Quick Information

Product Type: Chip Resistor - Surface Mount
Series: RC
Canonical Name: Yageo RC0603FR-07562RL Chip Resistor - Surface Mount, 562 Ohm, 1%, 0.1W
Subcategory: Surface Mount

RC0603FR-07562RL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

RC0603FR-07562RL Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0603FR-07562RL Features

  • Surface mount chip resistor with 562 Ohm resistance.
  • Tight tolerance of ±1% for precise applications.
  • Rated for 0.1W power dissipation.
  • Standard 0603 (1608 Metric) package size.
  • Operates across a wide temperature range.

RC0603FR-07562RL Applications

  • Suitable for general purpose applications.
  • Ideal for automated PCB assembly.
  • Used in circuits requiring precise resistance values.
  • Durable in various environmental conditions.

RC0603FR-07562RL FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of this resistor?

The resistance value is 562 ohms.

What is the tolerance of this resistor?

The tolerance is ±1%.

What is the power rating of this resistor?

The power rating is 0.1W, 1/10W.

What is the operating temperature range?

-55°C to 155°C.

What package size does this resistor come in?

It comes in a 0603 (1608 metric) package.

Is this resistor moisture resistant?

Yes, it is moisture resistant.
