| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5,915 pcs
$0.01
|
5915 pcs |
$0.01
|
1 | On Request | On Request | On Request | On Request | On Request | |||||||||
|
4,083 pcs
|
4083 pcs | On Request | 1 | On Request | On Request | 1603 | On Request | On Request | |||||||||
|
171 pcs
|
171 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Halogen Free | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

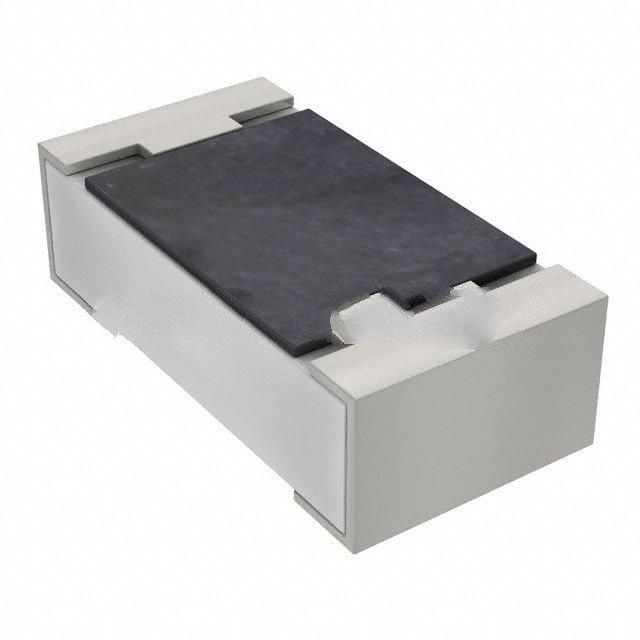

The Yageo RC0603FR-0751RL is a thick film chip resistor designed for general-purpose applications. It features a resistance value of 51 Ohms with a tight tolerance of ±1% and a power rating of 0.1W (1/10W).
This component operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±100ppm/°C. The package size is 0603 (1608 Metric), with dimensions of 1.60mm in length and 0.80mm in width, and a height of 0.55mm. It is designed for surface mounting and has two terminations.
The RC0603FR-0751RL is compliant with RoHS3 standards and is halogen-free. It also features moisture resistance and is classified under MSL 1, indicating unlimited usability under standard conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 51 Ohms.
The tolerance is ±1%.
The power rating is 0.1W (1/10W).
The temperature coefficient is ±100ppm/°C.
The package size is 0603 (1608 Metric), measuring 1.60mm in length and 0.80mm in width.
Yes, it is RoHS3 compliant.
The MSL is 1 Unlimited.
