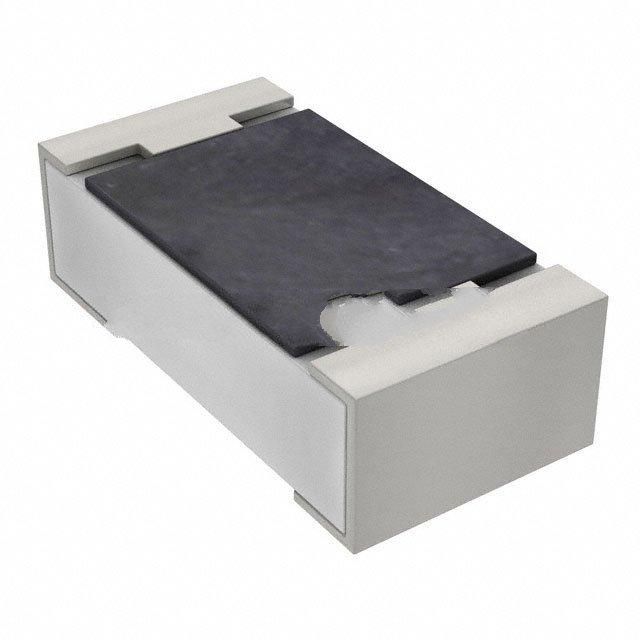

RC0603FR-074K02L The Yageo RC0603FR-074K02L is a surface mount chip resistor with a resistance of 4.02 kΩ and a tolerance of ±1%. It has a power rating of 0.1W.
Mfr Part #:

RC0603FR-074K02L

Available from 6 distributors
Mfr Name: Yageo
Yageo
The Yageo RC0603FR-074K02L is a surface mount chip resistor with a resistance of 4.02 kΩ and a tolerance of ±1%. It has a power rating of 0.1W.
✓ Total Stock: 9,090 pcs
$ Price Range: $0.02

RC0603FR-074K02L Available from 6 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RC0603FR-074K02L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Height
Length
Mounting Type
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RC0603FR-074K02L Description

Short technical summary and product information.

This Yageo RC0603FR-074K02L is a surface mount chip resistor from the RC_L series. It features a resistance value of 4.02 kΩ with a tight tolerance of ±1%. The resistor is rated for 0.1W (1/10W) of power and operates within a temperature range of -55°C to 155°C.



The component is constructed using a thick film process and comes in the compact 0603 (1608 Metric) package size. Its dimensions are 1.60mm in length and 0.80mm in width, with a height of 0.55mm. The resistor has 2 terminations and a temperature coefficient of ±100ppm/°C.



This chip resistor is suitable for general-purpose applications and is designed for high component and equipment reliability, saving PCB space. It meets RoHS3 compliance and has an MSL rating of 1 Unlimited.

RC0603FR-074K02L Quick Information

Product Type: Chip Resistor - Surface Mount
Series: RC_L
Canonical Name: Yageo RC0603FR-074K02L Thick Film Chip Resistor, 4.02 kΩ, ±1% Tolerance, 0.1W, 0603 Package
Subcategory: Chip Resistor - Surface Mount

RC0603FR-074K02L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RC0603FR-074K02L Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0603FR-074K02L Features

  • Surface mount thick film chip resistor.
  • 4.02 kΩ resistance with ±1% tolerance.
  • 0.1W power rating at 0603 package size.
  • Operating temperature from -55°C to 155°C.
  • RoHS3 compliant and MSL 1.

RC0603FR-074K02L Applications

  • Suitable for general purpose applications.
  • Ideal for space-constrained designs.
  • Used in automated PCB assembly.
  • Reliable component for various circuits.

RC0603FR-074K02L FAQs

5 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RC0603FR-074K02L resistor?

The resistance value is 4.02 kΩ.

What is the tolerance of the Yageo RC0603FR-074K02L chip resistor?

The tolerance is ±1%.

What is the power rating for the RC0603FR-074K02L resistor?

The power rating is 0.1W (1/10W).

What is the temperature coefficient of the RC0603FR-074K02L?

The temperature coefficient is ±100ppm/°C.

What package size is the Yageo RC0603FR-074K02L resistor available in?

It is available in the 0603 (1608 Metric) package size.
