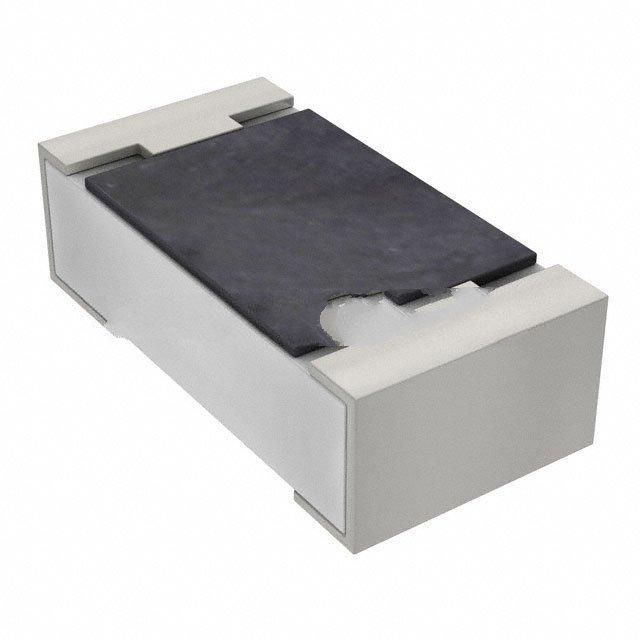

RC0603FR-0747K5L The Yageo RC0603FR-0747K5L is a surface mount chip resistor with a resistance of 47.5kΩ and a tolerance of ±1%. It is rated for 1/10W power.
Mfr Part #:

RC0603FR-0747K5L

Available from 7 distributors
Mfr Name: Yageo
Yageo
The Yageo RC0603FR-0747K5L is a surface mount chip resistor with a resistance of 47.5kΩ and a tolerance of ±1%. It is rated for 1/10W power.
✓ Total Stock: 26,519 pcs
$ Price Range: $0.02

RC0603FR-0747K5L Available from 7 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RC0603FR-0747K5L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Halogen Free
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RC0603FR-0747K5L Description

Short technical summary and product information.

The Yageo RC0603FR-0747K5L is a surface mount chip resistor designed for general-purpose applications. It features a resistance value of 47.5 kΩ with a tight tolerance of ±1% and a power rating of 0.1W (1/10W).



This resistor operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±100ppm/°C. The component is constructed using a thick film process and comes in an industry-standard 0603 (1608 Metric) package.



With dimensions of 1.60mm in length and 0.80mm in width, it offers space-saving benefits on PCBs. The resistor has 2 terminations and is noted for its moisture-resistant properties. It is compliant with RoHS3 standards and classified under MSL 1.

RC0603FR-0747K5L Quick Information

Product Type: Chip Resistor
Series: RC_L
Canonical Name: Yageo RC0603FR-0747K5L Chip Resistor
Subcategory: Chip Resistor - Surface Mount

RC0603FR-0747K5L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

RC0603FR-0747K5L Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0603FR-0747K5L Features

  • 47.5kΩ resistance with ±1% tolerance.
  • Rated for 0.1W (1/10W) power.
  • Operates from -55°C to 155°C.
  • Standard 0603 (1608 Metric) package.
  • Thick film construction for reliability.

RC0603FR-0747K5L Applications

  • Used in signal filtering circuits
  • Suitable for voltage division
  • Ideal for current limiting
  • Applicable in consumer electronics
  • Suitable for industrial equipment

RC0603FR-0747K5L FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RC0603FR-0747K5L?

The resistance value is 47.5 kilo-ohms.

What is the tolerance of this resistor?

The tolerance is ±1%.

What is the power rating of the RC0603FR-0747K5L?

The power rating is 0.1W, 1/10W.

What is the operating temperature range for this resistor?

It operates from -55°C to 155°C.

What package size does this resistor use?

It uses a 0603 (1608 metric) package.

Is the resistor moisture resistant?

Yes, it is moisture resistant.

Is the RC0603FR-0747K5L lead-free?

Yes, it is lead-free.
