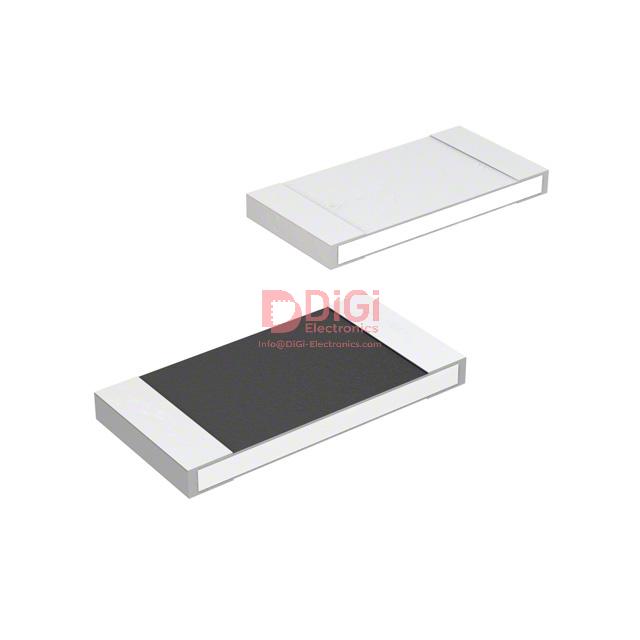

RC0603FR-073K6L The Yageo RC0603FR-073K6L is a surface mount chip resistor with a resistance of 3.6 kOhms and a tolerance of ±1%. It features a 0603 package size and a power rating of 0.1W.
Mfr Part #:

RC0603FR-073K6L

Available from 4 distributors
Mfr Name: Yageo
Yageo
The Yageo RC0603FR-073K6L is a surface mount chip resistor with a resistance of 3.6 kOhms and a tolerance of ±1%. It features a 0603 package size and a power rating of 0.1W.
✓ Total Stock: 15,620 pcs
$ Price Range: $0.02

RC0603FR-073K6L Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RC0603FR-073K6L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Halogen Free
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RC0603FR-073K6L Description

Short technical summary and product information.

This Yageo RC0603FR-073K6L is a thick film chip resistor designed for surface mount applications. It offers a resistance value of 3.6 kOhms with a tight tolerance of ±1%, making it suitable for general-purpose applications where precise resistance is required.



The resistor is housed in a compact 0603 (1608 Metric) package, measuring 1.60mm x 0.80mm with a height of 0.55mm. It has a power rating of 0.1W (1/10W) and an operating temperature range of -55°C to 155°C. The temperature coefficient is ±100ppm/°C.



This component is RoHS compliant and Halogen free, indicating its adherence to environmental standards. Its moisture resistance and MSL 1 rating suggest suitability for a wide range of environmental conditions. The thick film composition ensures reliability for various electronic circuits.

RC0603FR-073K6L Quick Information

Product Type: Chip Resistor
Series: RC_L
Canonical Name: Yageo RC0603FR-073K6L Chip Resistor
Subcategory: Surface Mount

RC0603FR-073K6L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RC0603FR-073K6L Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0603FR-073K6L Features

  • 3.6 kOhm resistance with ±1% tolerance.
  • 0.1W power rating in a 0603 package.
  • Operating temperature range of -55°C to 155°C.
  • Thick film composition for reliability.
  • RoHS compliant and Halogen free.

RC0603FR-073K6L Applications

  • Ideal for general purpose applications.
  • Suitable for surface mount designs.
  • Used in circuits requiring precise resistance.
  • Component for various electronic assemblies.

RC0603FR-073K6L FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RC0603FR-073K6L?

The resistance value is 3.6 kOhms.

What is the tolerance of the Yageo RC0603FR-073K6L chip resistor?

The tolerance is ±1%.

What is the power rating for the RC0603FR-073K6L?

The power rating is 0.1W, or 1/10W.

What is the operating temperature range for this chip resistor?

The operating temperature range is -55°C to 155°C.

What package size does the RC0603FR-073K6L use?

It uses the 0603 (1608 Metric) package size.

Is the Yageo RC0603FR-073K6L RoHS compliant?

Yes, it is RoHS compliant.
