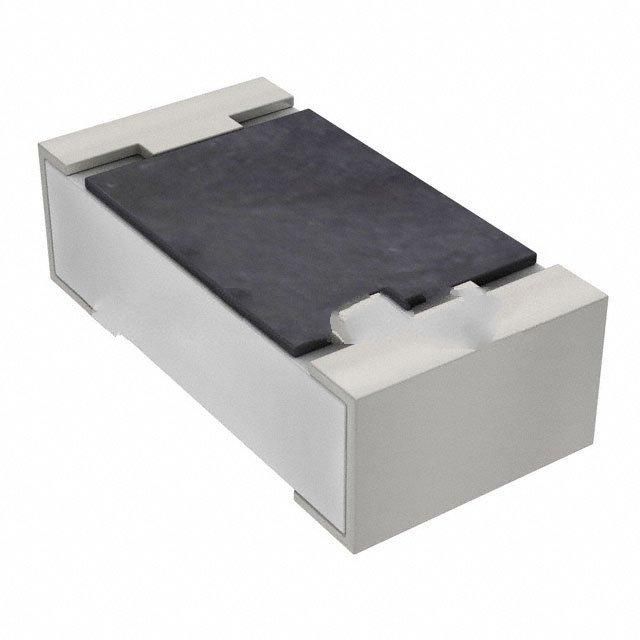

RC0603FR-073K01L The Yageo RC0603FR-073K01L is a thick film chip resistor with a resistance of 3.01 kΩ and a tolerance of ±1%. It is designed for surface mount applications in a 0603 package.
Mfr Part #:

RC0603FR-073K01L

Available from 8 distributors
Mfr Name: Yageo
Yageo
The Yageo RC0603FR-073K01L is a thick film chip resistor with a resistance of 3.01 kΩ and a tolerance of ±1%. It is designed for surface mount applications in a 0603 package.
✓ Total Stock: 20,574 pcs
$ Price Range: $0.02

RC0603FR-073K01L Available from 8 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RC0603FR-073K01L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Halogen Free
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Supplier Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RC0603FR-073K01L Description

Short technical summary and product information.

This Yageo RC0603FR-073K01L is a surface mount chip resistor from the RC_L series. It features a resistance value of 3.01 kΩ with a tight tolerance of ±1% and a power rating of 0.1W (1/10W). The resistor operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±100ppm/°C.



The component is constructed using a thick film composition and comes in a 0603 (1608 Metric) package size. Its dimensions are 1.60mm in length and 0.80mm in width, with a height of 0.55mm. The resistor has 2 terminations and is suitable for general-purpose applications.



It is compliant with RoHS3 standards and is Halogen and Lead-Free. The Moisture Sensitivity Level (MSL) is 1, indicating unlimited shelf life under recommended storage conditions. This component is designed for high reliability and saving PCB space.

RC0603FR-073K01L Quick Information

Product Type: Chip Resistor
Series: RC_L
Canonical Name: Yageo RC0603FR-073K01L Thick Film Chip Resistor 3.01 kΩ ±1% 1/10W
Subcategory: Chip Resistor - Surface Mount

RC0603FR-073K01L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

RC0603FR-073K01L Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0603FR-073K01L Features

  • Thick film chip resistor for general purpose.
  • Resistance value of 3.01 kΩ with ±1% tolerance.
  • Power rating of 0.1W (1/10W).
  • 0603 (1608 Metric) surface mount package.
  • Wide operating temperature range of -55°C to 155°C.

RC0603FR-073K01L Applications

  • Suitable for general purpose applications.
  • Ideal for space-saving PCB designs.
  • Used in circuits requiring stable resistance.
  • Component for high reliability systems.

RC0603FR-073K01L FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the resistor?

The resistance value is 3.01 kilo-ohms.

What is the tolerance of this resistor?

The tolerance is ±1%.

What is the power rating of this resistor?

The power rating is 0.1W, 1/10W.

What is the operating temperature range?

-55°C to 155°C.

What package size does this resistor use?

It uses the 0603 (1608 metric) package.

Is this resistor moisture resistant?

Yes, it features moisture resistant thick film construction.

Is this component RoHS compliant?

Yes, it is RoHS3 compliant.
