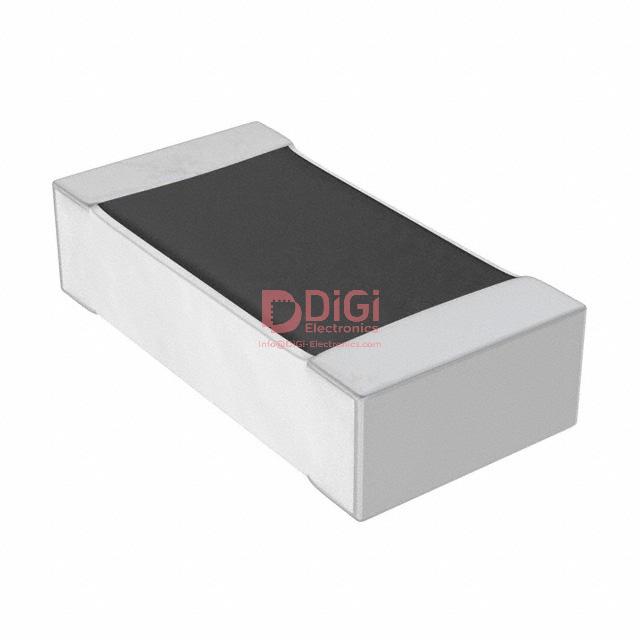

RC0603FR-07274RL The Yageo RC0603FR-07274RL is a surface mount chip resistor with a resistance of 274 Ohms and a tolerance of ±1%. It has a power rating of 0.1W.
Mfr Part #:

RC0603FR-07274RL

Available from 3 distributors
Mfr Name: Yageo
Yageo
The Yageo RC0603FR-07274RL is a surface mount chip resistor with a resistance of 274 Ohms and a tolerance of ±1%. It has a power rating of 0.1W.
✓ Total Stock: 9,531 pcs
$ Price Range: $0.02

RC0603FR-07274RL Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
4,940 pcs
On Request
4940 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
3,591 pcs
$0.01 ℹ
Qty Price
0+ 0.01
3591 pcs $0.01
QtyPrice
0+ 0.01
1 On Request On Request On Request On Request On Request
Innova Technologies ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request 1423 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RC0603FR-07274RL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Power Rating
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RC0603FR-07274RL Description

Short technical summary and product information.

The Yageo RC0603FR-07274RL is a surface mount chip resistor designed for general-purpose applications. It features a resistance value of 274 Ohms with a tight tolerance of ±1%, ensuring precise circuit performance.



The component is rated for 0.1W (1/10W) of power and operates within a temperature range of -55°C to 155°C. Its temperature coefficient is ±100ppm/°C, providing stability across varying thermal conditions.



Packaged in the compact 0603 (1608 Metric) case size, this resistor measures 1.60mm in length and 0.80mm in width, with a height of 0.55mm. It is constructed using a thick film composition and offers moisture resistance.



This chip resistor is suitable for various electronic designs where space is a consideration and reliable performance is required. Its surface mount termination style facilitates automated assembly processes.

RC0603FR-07274RL Quick Information

Product Type: Chip Resistor
Series: RC_L
Canonical Name: Yageo RC0603FR-07274RL Chip Resistor
Subcategory: Surface Mount

RC0603FR-07274RL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RC0603FR-07274RL Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0603FR-07274RL Features

  • 274 Ohm resistance with ±1% tolerance.
  • 0.1W power rating for general applications.
  • Compact 0603 (1608 Metric) package size.
  • Wide operating temperature range: -55°C to 155°C.
  • Thick film composition for reliability.

RC0603FR-07274RL Applications

  • Suitable for general purpose applications.
  • Ideal for automated surface mount assembly.
  • Used in circuits requiring precise resistance values.
  • Component for space-constrained designs.

RC0603FR-07274RL FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RC0603FR-07274RL?

The resistance value is 274 Ohms.

What is the tolerance of the Yageo RC0603FR-07274RL chip resistor?

The tolerance is ±1%.

What is the power rating for the RC0603FR-07274RL?

The power rating is 0.1W, or 1/10W.

What is the operating temperature range for this chip resistor?

The operating temperature range is -55°C to 155°C.

What is the package size of the RC0603FR-07274RL?

The package size is 0603 (1608 Metric).

What is the temperature coefficient of resistance for this component?

The temperature coefficient is ±100ppm/°C.
