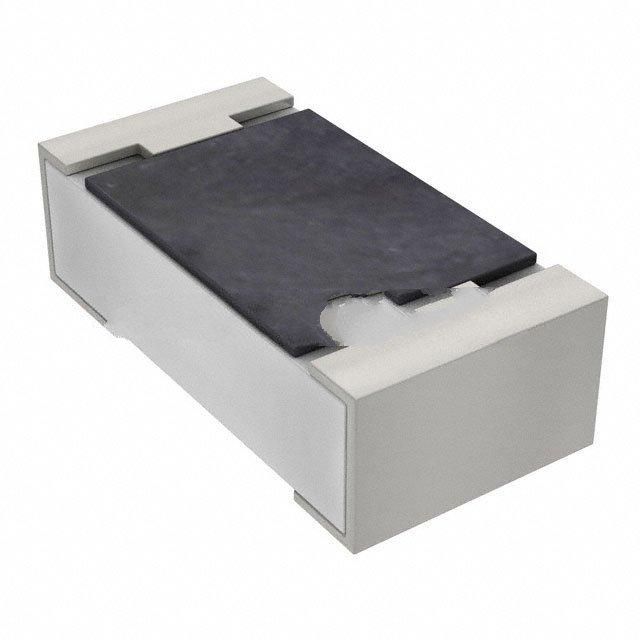

RC0603FR-0722R1L This Yageo RC0603FR-0722R1L is a surface mount chip resistor with a resistance of 22.1 Ohms and a tolerance of ±1%. It has a power rating of 0.1W.
Mfr Part #:

RC0603FR-0722R1L

Available from 4 distributors
Mfr Name: Yageo
Yageo
This Yageo RC0603FR-0722R1L is a surface mount chip resistor with a resistance of 22.1 Ohms and a tolerance of ±1%. It has a power rating of 0.1W.
✓ Total Stock: 12,713 pcs
$ Price Range: $0.02

RC0603FR-0722R1L Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RC0603FR-0722R1L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Halogen Free
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Power Rating
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RC0603FR-0722R1L Description

Short technical summary and product information.

The Yageo RC0603FR-0722R1L is a surface mount chip resistor designed for general-purpose applications. It features a resistance value of 22.1 Ohms with a tight tolerance of ±1% and a power rating of 0.1W (1/10W).



This resistor operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±100ppm/°C. The component is housed in a compact 0603 (1608 Metric) package, measuring 1.60mm in length and 0.80mm in width, with a height of 0.55mm. It has two terminations and is constructed using thick film technology.



Compliance information indicates RoHS3 compliance and that the product is Halogen Free and Lead Free. The Moisture Sensitivity Level (MSL) is rated as 1 Unlimited, and it is REACH Unaffected. The component is also noted for being moisture resistant.

RC0603FR-0722R1L Quick Information

Product Type: Chip Resistor
Series: RC_L
Canonical Name: Yageo RC0603FR-0722R1L Chip Resistor
Subcategory: Chip Resistor - Surface Mount

RC0603FR-0722R1L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

RC0603FR-0722R1L Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0603FR-0722R1L Features

  • Surface mount chip resistor with 22.1 Ohm resistance.
  • Tight tolerance of ±1% for precise applications.
  • Rated for 0.1W power dissipation.
  • Operates across a wide temperature range.
  • Compact 0603 package for space saving.

RC0603FR-0722R1L Applications

  • Suitable for general purpose surface mount circuits.
  • Used in low power electronic devices.
  • Ideal for precision resistor applications.
  • Applicable in moisture-resistant electronic assemblies.
  • Suitable for high-reliability industrial equipment.

RC0603FR-0722R1L FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RC0603FR-0722R1L resistor?

The resistance value is 22.1 Ohms.

What is the tolerance of the Yageo RC0603FR-0722R1L chip resistor?

The tolerance is ±1%.

What is the power rating for the RC0603FR-0722R1L?

The power rating is 0.1W.

What is the operating temperature range for this chip resistor?

The operating temperature range is -55°C to 155°C.

What package size is the RC0603FR-0722R1L resistor?

The resistor is in a 0603 (1608 Metric) package.

Is the Yageo RC0603FR-0722R1L RoHS compliant?

Yes, it is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this component?

The MSL is 1 Unlimited.
