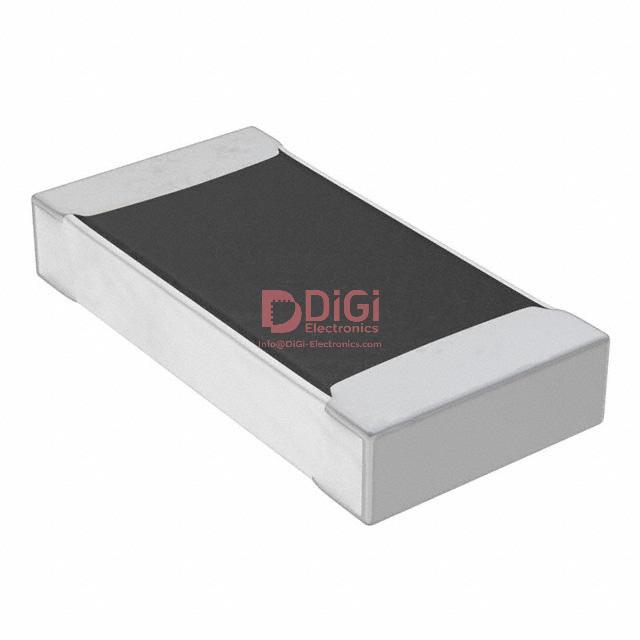

RC0603FR-07226RL The Yageo RC0603FR-07226RL is a surface mount chip resistor with a resistance of 226 Ohms and a tolerance of ±1%. It has a power rating of 1/10W and is housed in a 0603 package.
Mfr Part #:

RC0603FR-07226RL

Available from 5 distributors
Mfr Name: Yageo
Yageo
The Yageo RC0603FR-07226RL is a surface mount chip resistor with a resistance of 226 Ohms and a tolerance of ±1%. It has a power rating of 1/10W and is housed in a 0603 package.
✓ Total Stock: 224,177 pcs
$ Price Range: $0.02

RC0603FR-07226RL Available from 5 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RC0603FR-07226RL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Height
Length
Mounting Type
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RC0603FR-07226RL Description

Short technical summary and product information.

This Yageo RC0603FR-07226RL is a surface mount chip resistor designed for general-purpose applications. It features a resistance value of 226 Ohms with a tight tolerance of ±1%, ensuring accurate circuit performance. The resistor is rated for 1/10W of power and operates within a temperature range of -55°C to 155°C.



Constructed using thick film technology, this component is housed in a compact 0603 (1608 Metric) package, making it suitable for space-constrained designs. Its dimensions are 1.60mm in length and 0.80mm in width, with a height of 0.55mm. The resistor has two terminations and is designed for surface mounting.



This component is RoHS3 compliant and has an MSL rating of 1, indicating unlimited usability under standard conditions. Its moisture-resistant feature adds to its reliability in various environmental conditions.

RC0603FR-07226RL Quick Information

Product Type: Chip Resistor - Surface Mount
Series: RC_L
Canonical Name: RC0603FR-07226RL Thick Film Chip Resistor 226 Ohm ±1% 1/10W 0603 Surface Mount
Subcategory: Surface Mount

RC0603FR-07226RL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RC0603FR-07226RL Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0603FR-07226RL Features

  • Surface mount chip resistor with 226 Ohms resistance.
  • Tight tolerance of ±1% for precise applications.
  • Rated for 1/10W power dissipation.
  • Compact 0603 package suitable for dense designs.
  • Operates reliably from -55°C to 155°C.

RC0603FR-07226RL Applications

  • Suitable for general purpose applications.
  • Ideal for space-constrained circuit designs.
  • Used in applications requiring precise resistance values.
  • Reliable performance in varying temperature conditions.

RC0603FR-07226RL FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RC0603FR-07226RL?

The resistance value is 226 Ohms.

What is the tolerance of the Yageo RC0603FR-07226RL resistor?

The tolerance is ±1%.

What is the power rating for the RC0603FR-07226RL chip resistor?

The power rating is 0.1W or 1/10W.

What is the operating temperature range for this chip resistor?

The operating temperature range is -55°C to 155°C.

What are the dimensions of the 0603 package?

The 0603 package measures 1.60mm in length and 0.80mm in width.

Is the RC0603FR-07226RL RoHS compliant?

Yes, it is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this component?

The MSL is 1 Unlimited.
