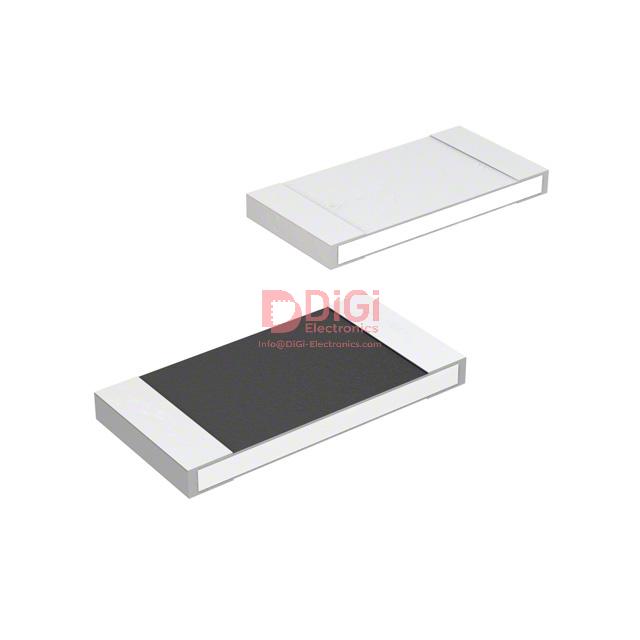

RC0603FR-0720R5L The Yageo RC0603FR-0720R5L is a surface mount chip resistor with a resistance of 20.5 Ohms and a tolerance of ±1%. It has a power rating of 0.1W and comes in an 0603 package.
Mfr Part #:

RC0603FR-0720R5L

Available from 2 distributors
Mfr Name: Yageo
Yageo
The Yageo RC0603FR-0720R5L is a surface mount chip resistor with a resistance of 20.5 Ohms and a tolerance of ±1%. It has a power rating of 0.1W and comes in an 0603 package.
✓ Total Stock: 884 pcs
$ Price Range: $0.02

RC0603FR-0720R5L Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
878 pcs
On Request
878 pcs On Request 1 On Request On Request On Request On Request On Request
Trace Tec ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RC0603FR-0720R5L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RC0603FR-0720R5L Description

Short technical summary and product information.

This Yageo RC0603FR-0720R5L is a surface mount chip resistor designed for general-purpose applications. It features a resistance value of 20.5 Ohms with a tight tolerance of ±1%, ensuring accurate circuit performance.



The resistor is rated for 0.1W (1/10W) of power and operates within a temperature range of -55°C to 155°C. Its thick film composition contributes to its reliability.



Packaged in an 0603 (1608 Metric) case, this component has dimensions of 1.60mm in length and 0.80mm in width, with a height of 0.55mm. It has two terminations and is moisture resistant.



The RC0603FR-0720R5L is RoHS3 compliant, indicating adherence to environmental regulations regarding hazardous substances.

RC0603FR-0720R5L Quick Information

Product Type: Chip Resistor - Surface Mount
Series: RC_L
Canonical Name: RC0603FR-0720R5L 20.5 Ohm ±1% 0.1W 0603 Thick Film Chip Resistor
Subcategory: Surface Mount

RC0603FR-0720R5L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RC0603FR-0720R5L Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RC0603FR-0720R5L Features

  • 20.5 Ohm resistance with ±1% tolerance.
  • 0.1W power rating suitable for general use.
  • 0603 package size for surface mounting.
  • Operates from -55°C to 155°C.
  • RoHS3 compliant for environmental considerations.

RC0603FR-0720R5L Applications

  • Suitable for general purpose applications.
  • Ideal for compact electronic designs.
  • Used in circuits requiring precise resistance.
  • Surface mount assembly compatibility.

RC0603FR-0720R5L FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RC0603FR-0720R5L chip resistor?

The resistance value is 20.5 Ohms.

What is the tolerance of the RC0603FR-0720R5L resistor?

The tolerance is ±1%.

What is the power rating for the RC0603FR-0720R5L?

The power rating is 0.1W, or 1/10W.

What is the operating temperature range for this chip resistor?

The operating temperature range is -55°C to 155°C.

What are the dimensions of the RC0603FR-0720R5L in millimeters?

The dimensions are 1.60mm in length, 0.80mm in width, and 0.55mm in height.

What is the package type for the RC0603FR-0720R5L?

The package type is 0603 (1608 Metric).
