| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
125,000 pcs
|
125000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

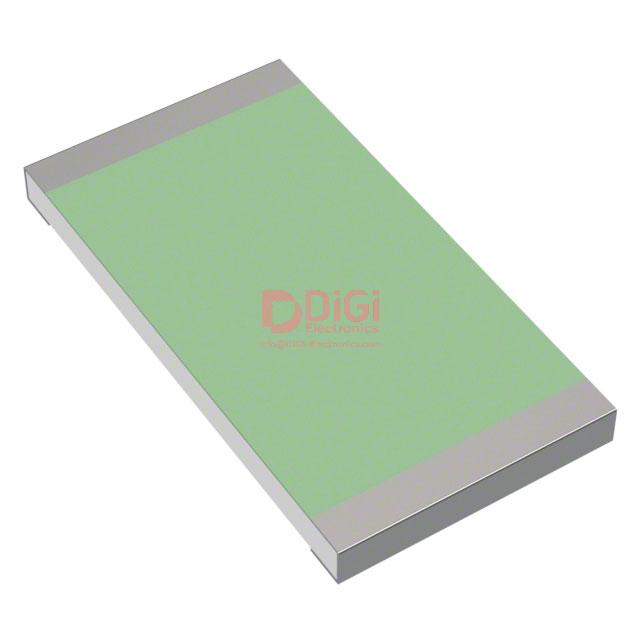

The Yageo RC0603FR-071R69L is a surface mount chip resistor designed for general-purpose applications. It features a resistance value of 1.69 Ohms with a tight tolerance of ±1%, ensuring accurate circuit performance.
This component is rated for 1/10W (0.1W) of power and operates within a temperature range of -55°C to 155°C. The temperature coefficient is ±200ppm/°C.
Packaged in the compact 0603 (1608 Metric) case size, it measures 1.60mm in length, 0.80mm in width, and 0.55mm in height. It has two terminations and is constructed using thick film technology. The resistor is also moisture resistant.
This series is RoHS compliant and meets MSL 1 standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 1.69 Ohms.
The tolerance is ±1%.
The power rating is 0.1W or 1/10W.
The operating temperature range is -55°C to 155°C.
The package size is 0603 (1608 Metric).
Yes, it is RoHS3 Compliant.
The MSL is 1 Unlimited.
